Brand
Browning
Member SKU ID
395129519
AD SKU ID
BPT_BROWNING_Q3_2018_14913
Category
Bushings|Shaft Bushings|Split Taper Bushings
Category Child Node
Split Taper Bushings
Barrel Diameter
2.5567 in Small End/2.625 in Large End
Bolt Circle Diameter
3-1/8 in
Bore Diameter
2-1/8 in
Flange Diameter
3-11/16 in
Flange Thickness
1/2 in
Keyway Size
1/2 x 1/4 in
Material
Sintered Steel
Number of Bolt Holes
3
Overall Length
1-15/16 in
Screw Size
5/16 x 1-1/4 in
Suitable For Use With
Browning Multiple Groove Sheave
Long Description

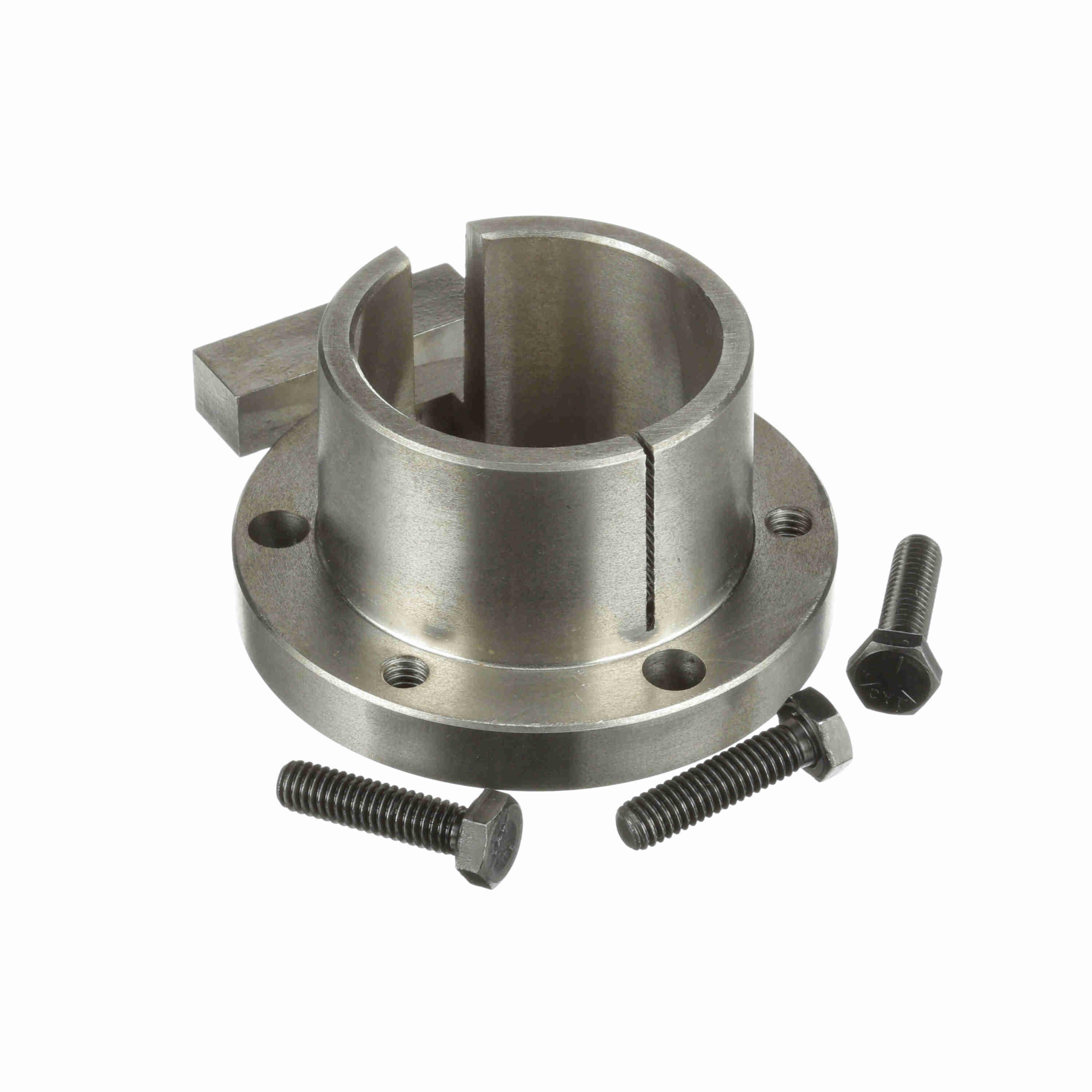

Browning Split Taper Bushing, 2-1/8 in Bore Dia, 2.5567 in Small End/2.625 in Large End Barrel Dia, 3-1/8 in Bolt Circle, 3-11/16 in Flange Dia, 1/2 in Flange Thickness, 3 Bolt Holes, 5/16 x 1-1/4 in Screw, For Use With: Browning Multiple Groove Sheave, 1-15/16 in Overall Length, 1/2 x 1/4 in Keyway, Sintered Steel
