Brand
Browning
Member SKU ID
395129655
AD SKU ID
BPT_BROWNING_Q3_2018_01220
Category
Bearings|Flange Mount Bearing Units|Flange Mount Ball Bearing Units
Category Child Node
Flange Mount Ball Bearing Units
Bearing Material
Steel
Bolt Center-to-Center Length
3-57/64 in
Bore Diameter
1 in
Finish
Gray Painted
Flange Mounting Type
2-Bolt
Load Capacity
2801 lb Dynamic/1651 lb Static
Locking Device
Set Screw
Maximum Speed
3500 rpm
Overall Depth
1-25/64 in
Overall Height
4-7/8 in
Overall Length/Diameter
2-3/4 in
Seal Material
Nitrile Rubber
Series
VF2S 100
Temperature Rating
-20 to 200 deg F
Type
Intermediate Duty Non-Expansion
Long Description

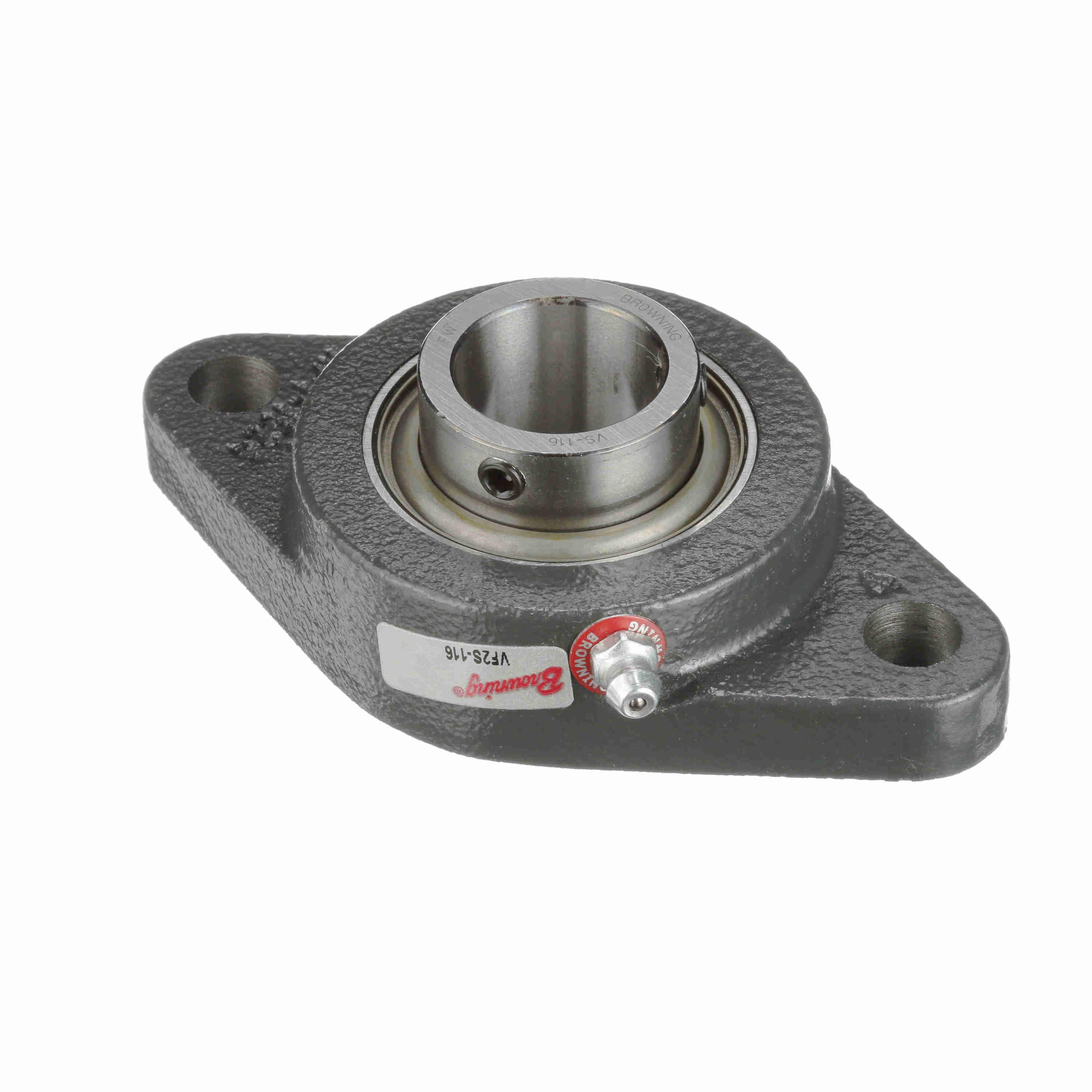

Browning Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion, Series: VF2S 100, 1 in Bore, 3-57/64 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-3/4 in Overall Length/Diameter, 1-25/64 in Overall Depth, 4-7/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 3500 rpm Maximum, -20 to 200 deg F, Gray Painted
