Brand
Browning
Member SKU ID
395129147
AD SKU ID
BPT_BROWNING_Q3_2018_01224
Category
Bearings|Flange Mount Bearing Units|Flange Mount Ball Bearing Units
Category Child Node
Flange Mount Ball Bearing Units
Bearing Material
Steel
Bolt Center-to-Center Length
4-19/32 in
Bore Diameter
1-3/16 in
Finish
Gray Painted
Flange Mounting Type
2-Bolt
Load Capacity
4381 lb Dynamic/2567 lb Static
Locking Device
Set Screw
Maximum Speed
3000 rpm
Overall Depth
1-15/32 in
Overall Height
5-9/16 in
Overall Length/Diameter
3-1/8 in
Seal Material
Nitrile Rubber
Series
VF2S 100
Temperature Rating
-20 to 200 deg F
Type
Intermediate Duty Non-Expansion
Long Description

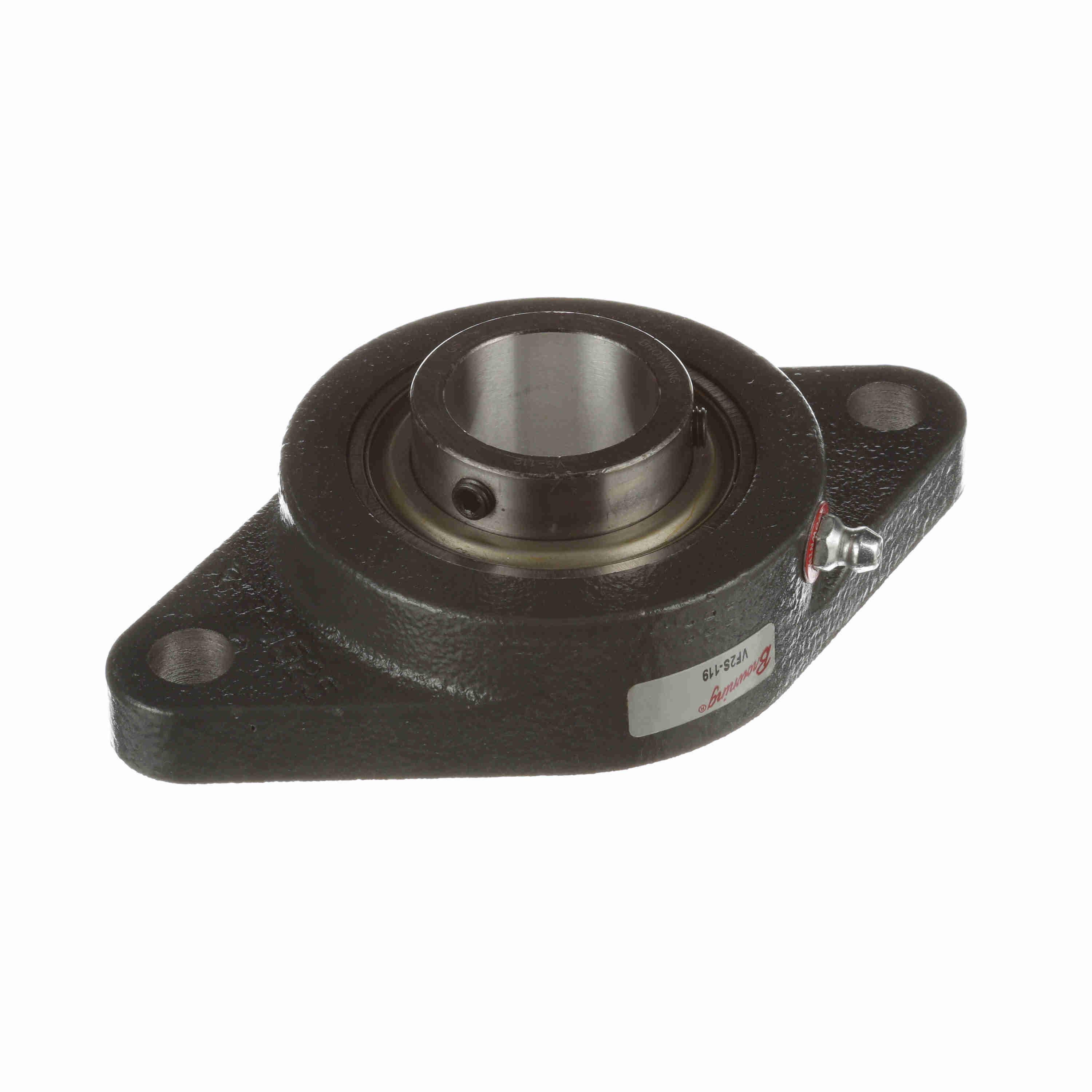

Browning Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion, Series: VF2S 100, 1-3/16 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-1/8 in Overall Length/Diameter, 1-15/32 in Overall Depth, 5-9/16 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 3000 rpm Maximum, -20 to 200 deg F, Gray Painted
