Brand
Browning
Member SKU ID
395129219
AD SKU ID
BPT_BROWNING_Q3_2018_01053
Category
Bearings|Flange Mount Bearing Units|Flange Mount Ball Bearing Units
Category Child Node
Flange Mount Ball Bearing Units
Bearing Material
Steel
Bolt Center-to-Center Length
4 in
Bore Diameter
1-1/2 in
Finish
Gray Painted
Flange Mounting Type
4-Bolt
Load Capacity
7340 lb Dynamic/4467 lb Static
Locking Device
Set Screw
Maximum Speed
2500 rpm
Overall Depth
1-49/64 in
Overall Height
5-1/8 in
Overall Length/Diameter
5-1/8 in
Seal Material
Nitrile Rubber
Series
VF4S 100
Temperature Rating
-20 to 200 deg F
Type
Intermediate Duty Non-Expansion Round/Straight Bore
Long Description

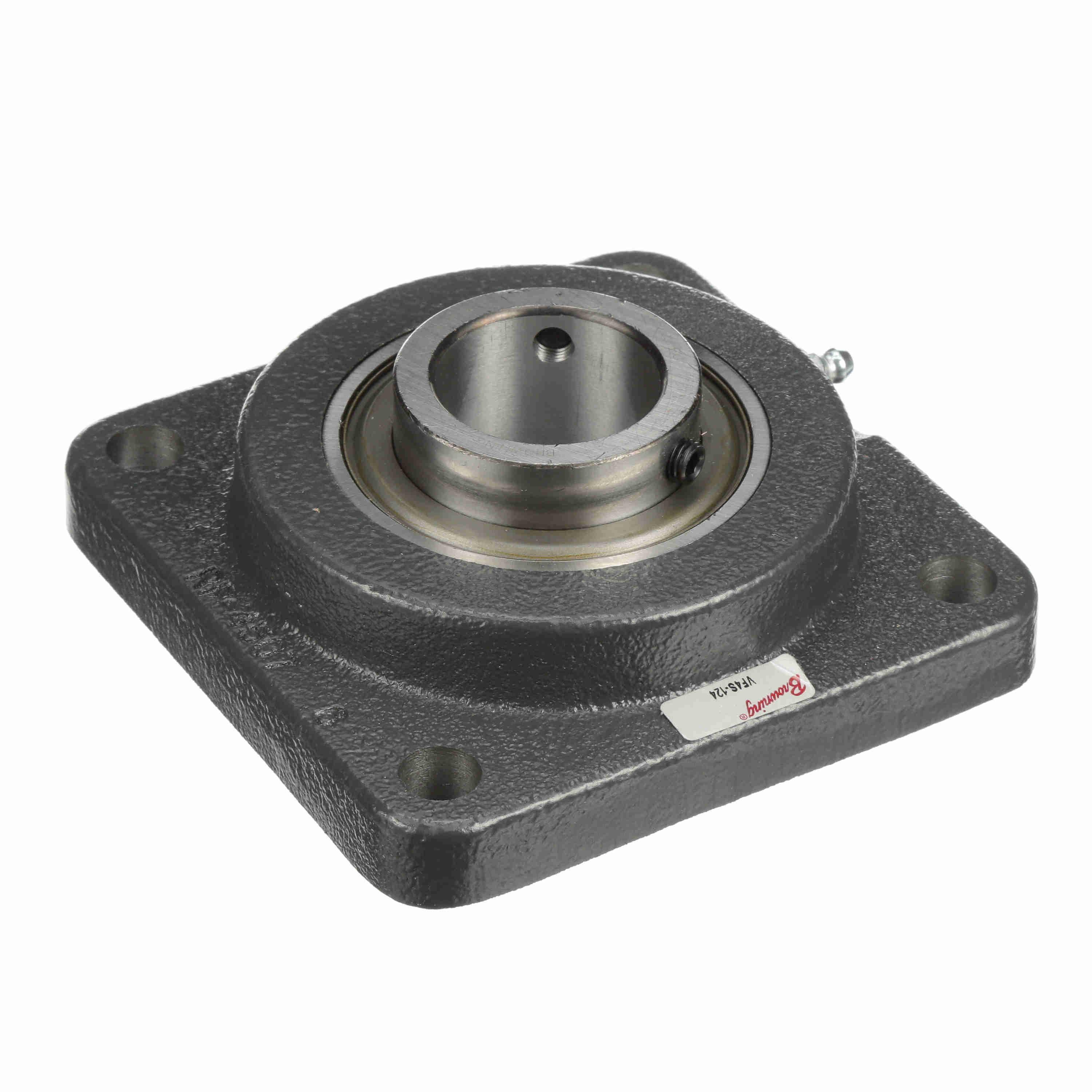

Browning Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion Round/Straight Bore, Series: VF4S 100, 1-1/2 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 1-49/64 in Overall Depth, 5-1/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 7340 lb Dynamic/4467 lb Static Load, 2500 rpm Maximum, -20 to 200 deg F, Gray Painted
