Brand
Browning
Member SKU ID
395129320
AD SKU ID
BPT_BROWNING_Q3_2018_01348
Category
Bearings|Pillow Block & Base Mount Bearings|Pillow Block Ball Bearing Units
Category Child Node
Pillow Block Ball Bearing Units
Base Width
1-3/4 in
Base to Bore Centerline
1-7/8 in
Bolt Center-to-Center Length
4-5/8 to 5-3/8 in
Bore Diameter
1-7/16 in
Bore Type
Round
Expansion Type
Non-Expansion (Fixed)
Finish
Gray Painted
Load Capacity
5782 lb Dynamic/3493 lb Static
Locking Device
Set Screw
Material
Cast Iron
Maximum Speed
2500 rpm
Mounting Type
Two-Bolt Base
Overall Height
3-11/16 in
Overall Length
6-3/4 in
Seal Type
Single Lip
Series
VPS 100
Temperature Rating
-20 to 200 deg F
Type
Intermediate Duty
Long Description

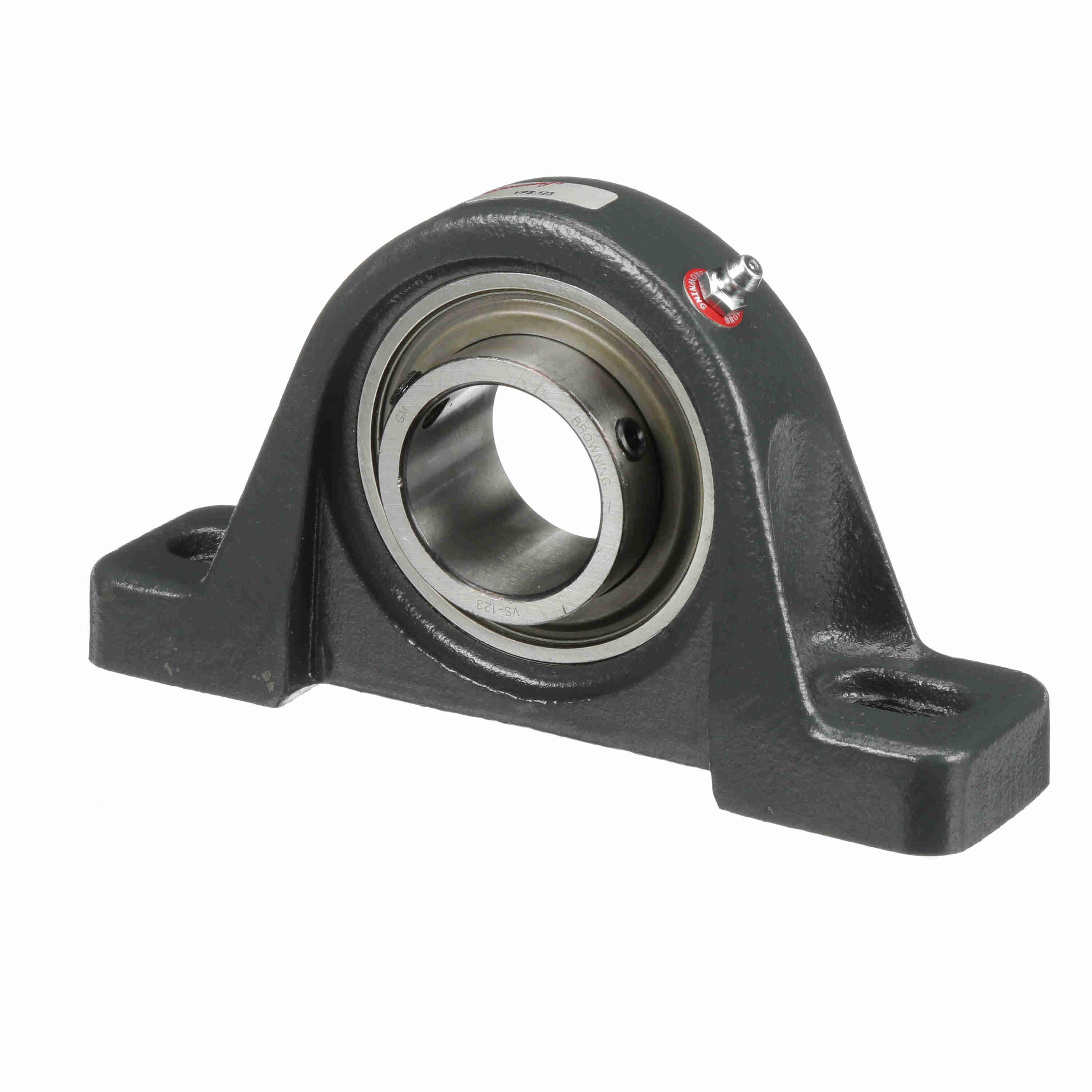

Browning Pillow Block Ball Bearing, Intermediate Duty, Series: VPS 100, 1-7/16 in Bore, 4-5/8 to 5-3/8 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 6-3/4 in Overall Length, 3-11/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-3/4 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 5782 lb Dynamic/3493 lb Static Load, -20 to 200 deg F, 2500 rpm Maximum, Cast Iron, Gray Painted
