Brand
Browning
Member SKU ID
395129338
AD SKU ID
BPT_BROWNING_Q3_2018_01458
Category
Bearings|Pillow Block & Base Mount Bearings|Pillow Block Ball Bearing Units
Category Child Node
Pillow Block Ball Bearing Units
Base Width
2 in
Base to Bore Centerline
2-1/8 in
Bolt Center-to-Center Length
5-1/4 to 6-1/16 in
Bore Diameter
1-11/16 in
Bore Type
Round
Expansion Type
Non-Expansion (Fixed)
Finish
Gray Painted
Load Capacity
7901 lb Dynamic/5139 lb Static
Locking Device
Set Screw
Material
Cast Iron
Maximum Speed
2000 rpm
Mounting Type
Two-Bolt Base
Overall Height
4-1/4 in
Overall Length
7-3/8 in
Seal Type
Single Lip
Series
VPS 100
Temperature Rating
-20 to 200 deg F
Type
Intermediate Duty
Long Description

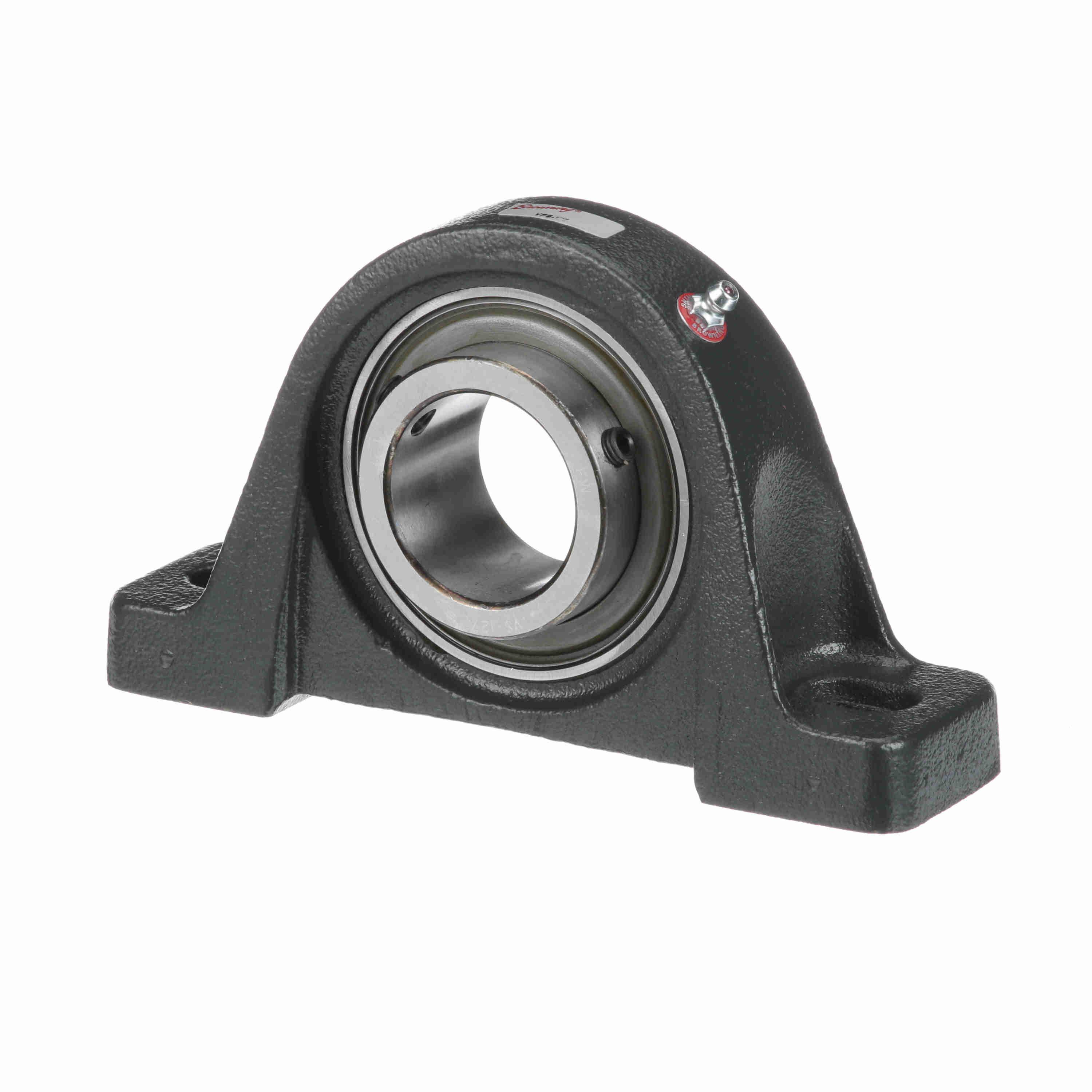

Browning Pillow Block Ball Bearing, Intermediate Duty, Series: VPS 100, 1-11/16 in Bore, 5-1/4 to 6-1/16 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7-3/8 in Overall Length, 4-1/4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 7901 lb Dynamic/5139 lb Static Load, -20 to 200 deg F, 2000 rpm Maximum, Cast Iron, Gray Painted
