Brand
Browning
Member SKU ID
395129371
AD SKU ID
BPT_BROWNING_Q3_2018_01253
Category
Bearings|Pillow Block & Base Mount Bearings|Pillow Block Ball Bearing Units
Category Child Node
Pillow Block Ball Bearing Units
Base Width
1-13/32 in
Base to Bore Centerline
1-7/16 in
Bolt Center-to-Center Length
3-23/32 to 4-17/32 in
Bore Diameter
1 in
Bore Type
Round
Expansion Type
Non-Expansion (Fixed)
Finish
Gray Painted
Load Capacity
2801 lb Dynamic/1651 lb Static
Locking Device
Set Screw
Material
Cast Iron
Maximum Speed
5500 rpm
Mounting Type
Two-Bolt Base
Overall Height
2-13/16 in
Overall Length
5-1/2 in
Seal Type
Single Lip Contact with Flinger
Series
VPS 200
Temperature Rating
-20 to 200 deg F
Type
Normal Duty
Long Description

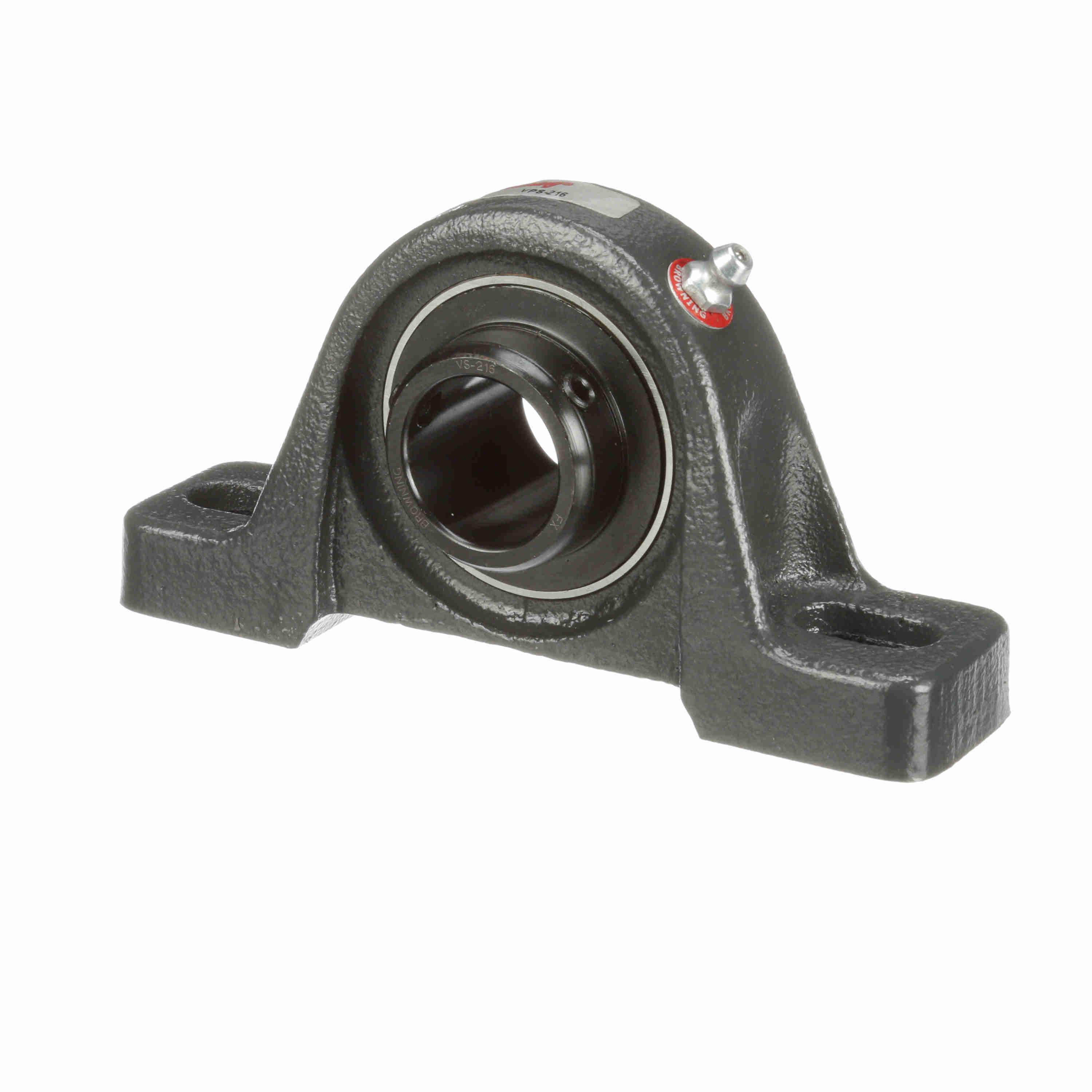

Browning Pillow Block Ball Bearing, Normal Duty, Series: VPS 200, 1 in Bore, 3-23/32 to 4-17/32 in Bolt Center-to-Center Length, 1-7/16 in Base to Bore Centerline, 5-1/2 in Overall Length, 2-13/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-13/32 in Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 2801 lb Dynamic/1651 lb Static Load, -20 to 200 deg F, 5500 rpm Maximum, Cast Iron, Gray Painted
