Brand
Browning
Member SKU ID
395129394
AD SKU ID
BPT_BROWNING_Q3_2018_01555
Category
Bearings|Pillow Block & Base Mount Bearings|Pillow Block Ball Bearing Units
Category Child Node
Pillow Block Ball Bearing Units
Base Width
2-3/8 in
Base to Bore Centerline
2-3/4 in
Bolt Center-to-Center Length
6-53/64 to 7-63/64 in
Bore Diameter
2-7/16 in
Bore Type
Round
Expansion Type
Non-Expansion (Fixed)
Finish
Gray Painted
Load Capacity
11789 lb Dynamic/8150 lb Static
Locking Device
Set Screw
Material
Cast Iron
Maximum Speed
2500 rpm
Mounting Type
Two-Bolt Base
Overall Height
5-9/16 in
Overall Length
9-1/2 in
Seal Type
Single Lip Contact with Flinger
Series
VPS 200
Temperature Rating
-20 to 200 deg F
Type
Normal Duty
Long Description

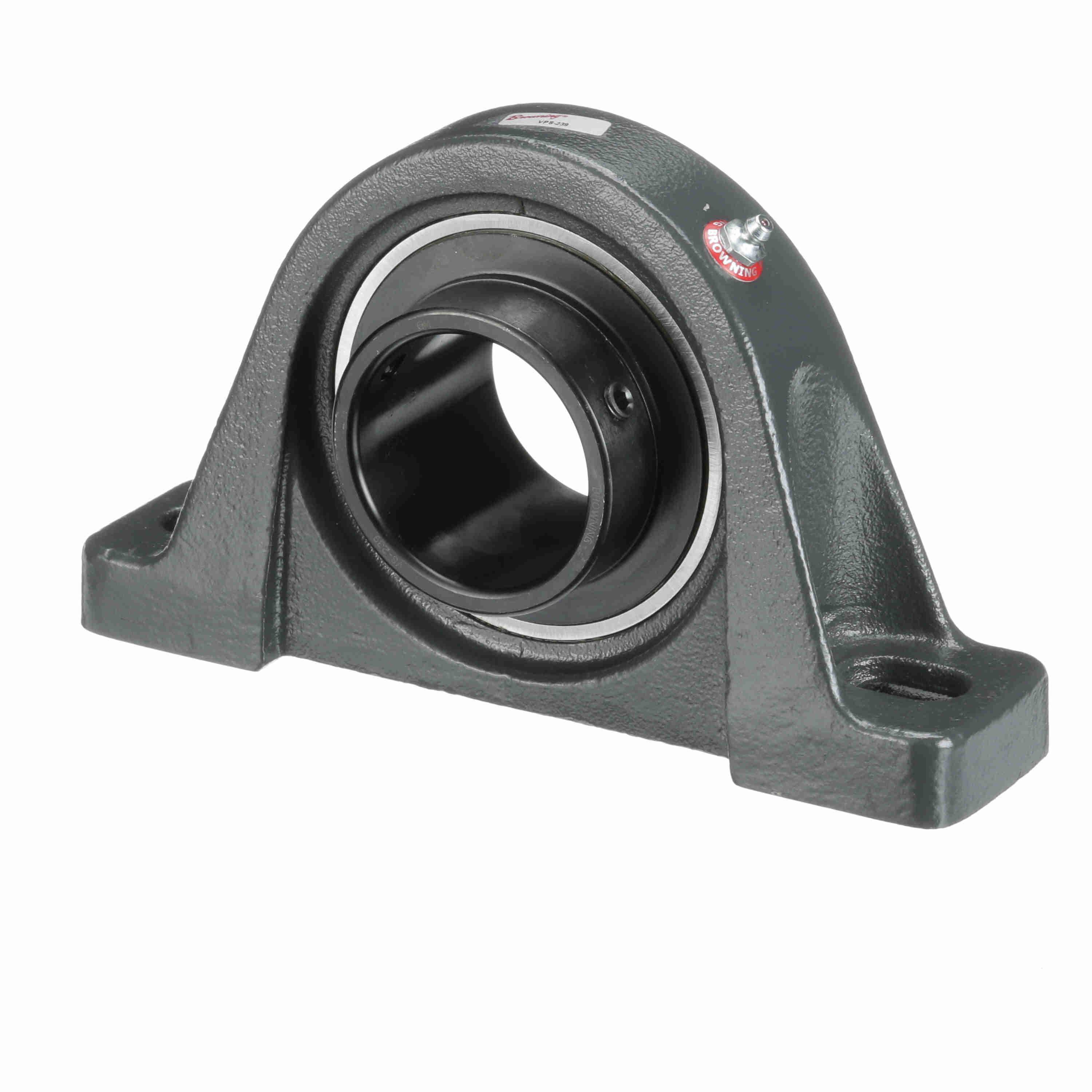

Browning Pillow Block Ball Bearing, Normal Duty, Series: VPS 200, 2-7/16 in Bore, 6-53/64 to 7-63/64 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 9-1/2 in Overall Length, 5-9/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-3/8 in Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 11789 lb Dynamic/8150 lb Static Load, -20 to 200 deg F, 2500 rpm Maximum, Cast Iron, Gray Painted
