Brand
Browning
Member SKU ID
395129434
AD SKU ID
BPT_BROWNING_Q3_2018_01254
Category
Bearings|Take-Up Bearings & Frames|Center Pull/Side Mount Take-Up Bearings
Category Child Node
Center Pull/Side Mount Take-Up Bearings
Bearing Material
Steel
Bore Diameter
1 in
Finish
Gray Painted
Load Capacity
2801 lb Dynamic/1651 lb Static
Series
VTWS 200
Suitable For Use With
1SF10, 3SF10, 6SF10, 9SF10 Frame
Temperature Rating
-20 to 200 deg F
Type
Non-Expansion Normal Duty
Long Description

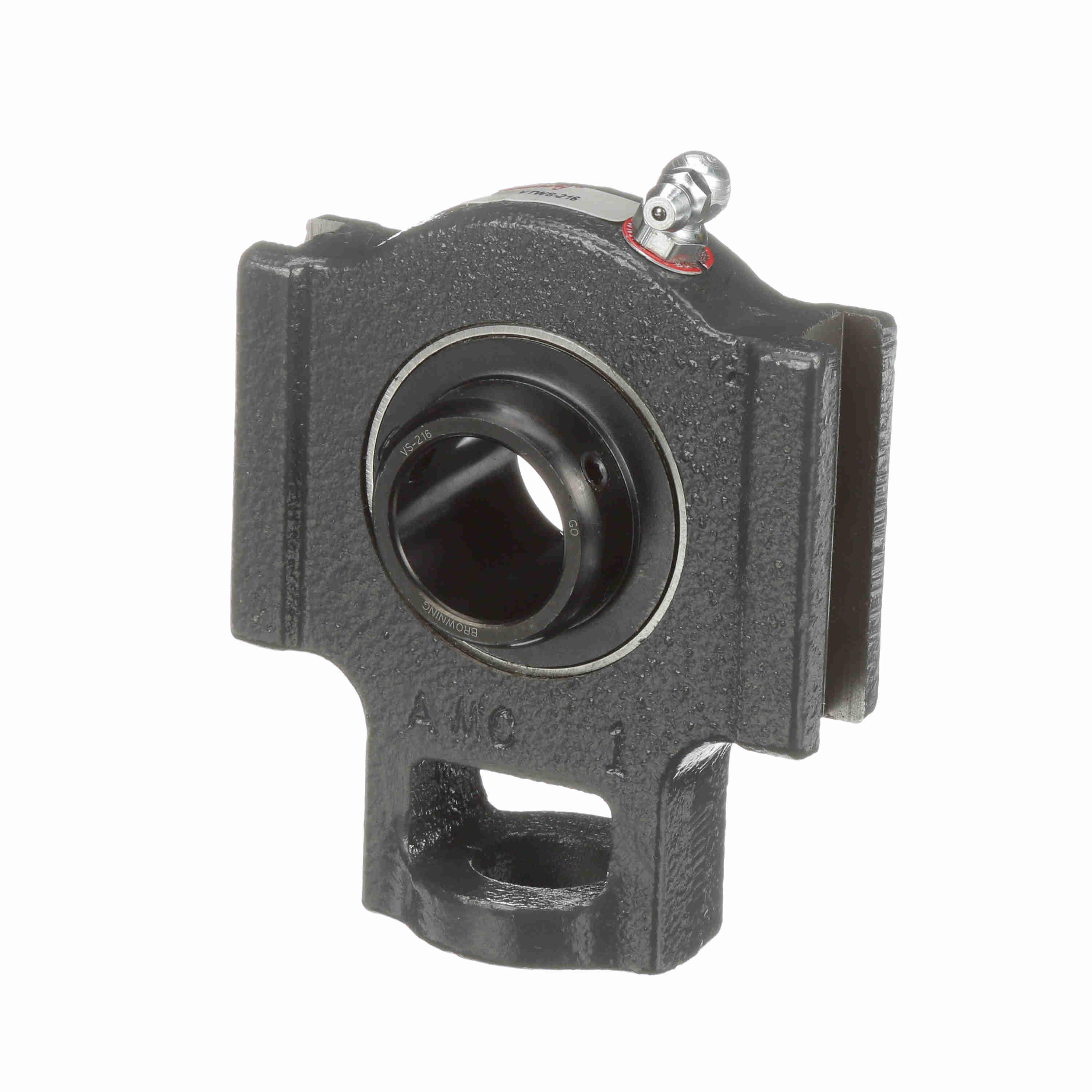

Browning Take-Up Ball Bearing Unit, Non-Expansion Normal Duty, Series: VTWS 200, 1 in Bore Dia, 4-3/32 in Length, 1-1/2 in Width, 3-1/2 in Height, 2801 lb Dynamic/1651 lb Static, For Use With: 1SF10, 3SF10, 6SF10, 9SF10 Frame, Steel Bearing, -20 to 200 deg F, Gray Painted
