Brand
Chicago-Latrobe
Member SKU ID
395132626
AD SKU ID
6976328
Category
Cutting Tools & Metalworking|Holemaking|Drill Bits|Multi-Purpose Drill Bits|Jobber Length Drill Bits
Category Child Node
Jobber Length Drill Bits
Applicable Materials
Alloy Steel, Stainless Steel, Titanium and Tool Steel
Cutting Depth
5XD
Cutting Direction
Right Hand
Cutting Edge Material
M42 HSS-Co 8%
Drill Diameter Measurement System
Imperial
Drill Size - Decimal Inch
0.1875 in
Drill Size - Fraction
3/16 in
Finish
Straw Oxide
Flute Length
2-5/16 in
Flute Type
Right Spiral
Material
M42 HSS-Co 8%
Number of Flutes
2
Overall Length
3-1/2 in
Point Angle
135 deg
Point Type
Split
Series
550
Shank Size
3/16 in Dia x 1-3/16 in L
Shank Type
Straight
Through Coolant (Yes/No)
No
Type
Heavy Duty
Long Description

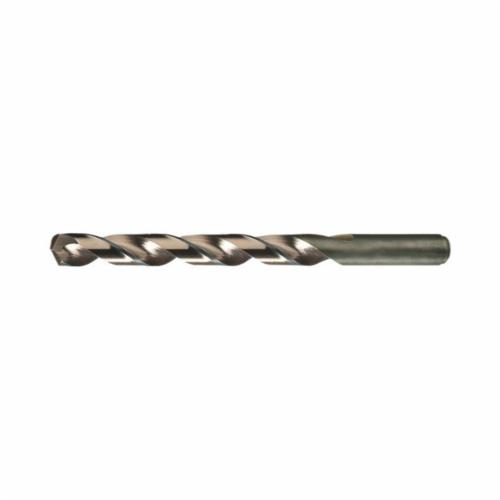

Chicago-Latrobe Jobber Length Drill Bit, Heavy Duty, Series: 550, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 3-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 2-5/16 in Flute Length, 3/16 in Dia x 1-3/16 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8% Cutting Edge, No Through Coolant, M42 HSS-Co 8%, Straw Oxide, Applicable Materials: Alloy Steel, Stainless Steel, Titanium and Tool Steel
