Brand
Cleveland
Member SKU ID
395132977
AD SKU ID
11069861
Category
Cutting Tools & Metalworking|Holemaking|Drill Bits|Multi-Purpose Drill Bits|Extension Length Drill Bits
Category Child Node
Extension Length Drill Bits
Applicable Materials
Alloy Tool Steel, Carbon Steel, Cast Iron, Low Carbons, Stainless Steel and Ferrous Metals
Cutting Depth
5-1/2 in
Cutting Direction
Right Hand
Cutting Edge Material
HSS
Drill Size - Decimal Inch
0.1875 in
Drill Size - Fraction
3/16 in
Finish
Black Oxide/Steam Oxide
Flute Length
5-1/2 in
Flute Type
Spiral
Material
HSS
Number of Flutes
2
Overall Length
8 in
Point Angle
118 deg
Point Type
K-Notched/Radial
Series
950E
Shank Size
3/16 in
Shank Type
Straight
Specifications Met
ASME B94.11M
Through Coolant (Yes/No)
No
Type
General Purpose Regular Helix
Long Description

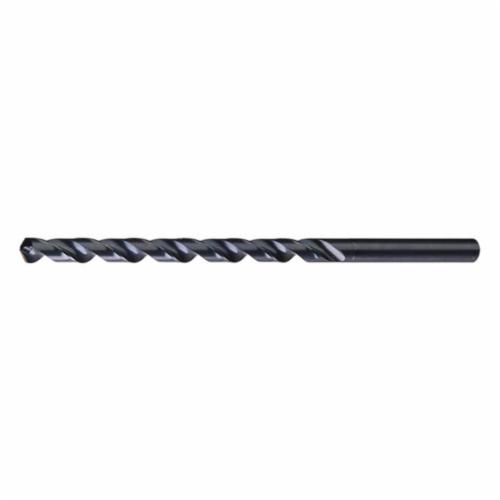

Cleveland Extra Length Drill, General Purpose Regular Helix, Series: 950E, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 8 in Overall Length, 5-1/2 in Cutting Depth, 2 Flutes, Spiral Flute, 5-1/2 in Flute Length, 3/16 in Shank, Straight Shank, 118 deg Point, K-Notched/Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide/Steam Oxide, Applicable Materials: Alloy Tool Steel, Carbon Steel, Cast Iron, Low Carbons, Stainless Steel and Ferrous Metals, Specifications Met: ASME B94.11M, No Through Coolant
