Brand
Cleveland
Member SKU ID
395132368
AD SKU ID
6620069
Category
Cutting Tools & Metalworking|Holemaking|Drill Bits|Multi-Purpose Drill Bits|Jobber Length Drill Bits
Category Child Node
Jobber Length Drill Bits
Applicable Materials
Aluminum, Cast Iron, Copper Alloy and Low Carbon Steel
Cutting Depth
4XD
Cutting Direction
Right Hand
Cutting Edge Material
HSS-E
Drill Diameter Measurement System
Imperial
Drill Size - Decimal Inch
0.1875 in
Drill Size - Fraction
3/16 in
Finish
Steam Oxide
Flute Length
2-5/16 in
Flute Type
Right Spiral
Material
HSS-E
Number of Flutes
2
Overall Length
3-1/2 in
Point Angle
118 deg
Point Type
Radial
Series
2001G
Shank Size
3/16 in Dia x 1-3/16 in L
Shank Type
Straight
Through Coolant (Yes/No)
No
Type
General Purpose
Long Description

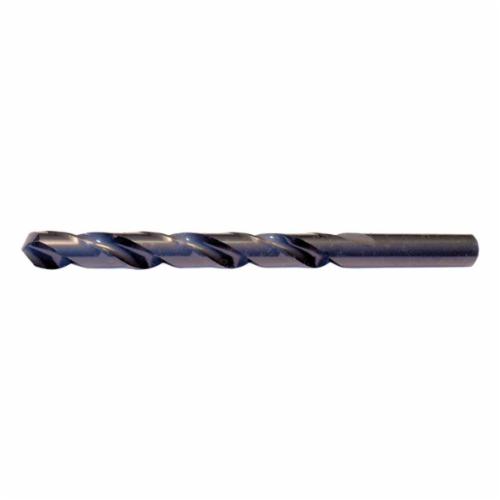

Cleveland CLE-MAX Jobber Length Drill Bit, General Purpose, Series: 2001G, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 3-1/2 in Overall Length, 4XD Cutting Depth, 2 Flutes, Right Spiral Flute, 2-5/16 in Flute Length, 3/16 in Dia x 1-3/16 in L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Steam Oxide, Applicable Materials: Aluminum, Cast Iron, Copper Alloy and Low Carbon Steel
