Brand
Hub City
Member SKU ID
395129322
AD SKU ID
REGAL_BPT_Q3_2020_16621
Category
Gear Reducers & Gearmotors|Gear Drives|Right Angle Gear Drives|Spiral Bevel Right Angle Drives
Category Child Node
Spiral Bevel Right Angle Drives
Centre Distance
5-23/32 in
Dimensions
8-9/32 in D x 4-1/8 in H
Efficiency
0.975
Gear Ratio
{0}
Horsepower
10-1/4 hp
Input Maximum Speed
1750 rpm
Input Size
1 in Dia x 2 in L
Input Type
Shaft
Keyway Size
1/4 x 1/8 in Input
Lubrication Type
Conventional Oil
Material
Cast Iron
Mounting Type
Four-Bolt Surface
Output Maximum Speed
875 rpm
Output Size
1 in Dia
Output Type
Shaft
Series
150
Torque Rating
736 in-lb
Type
Right Angle Spiral Single Reduction Style D E
Long Description

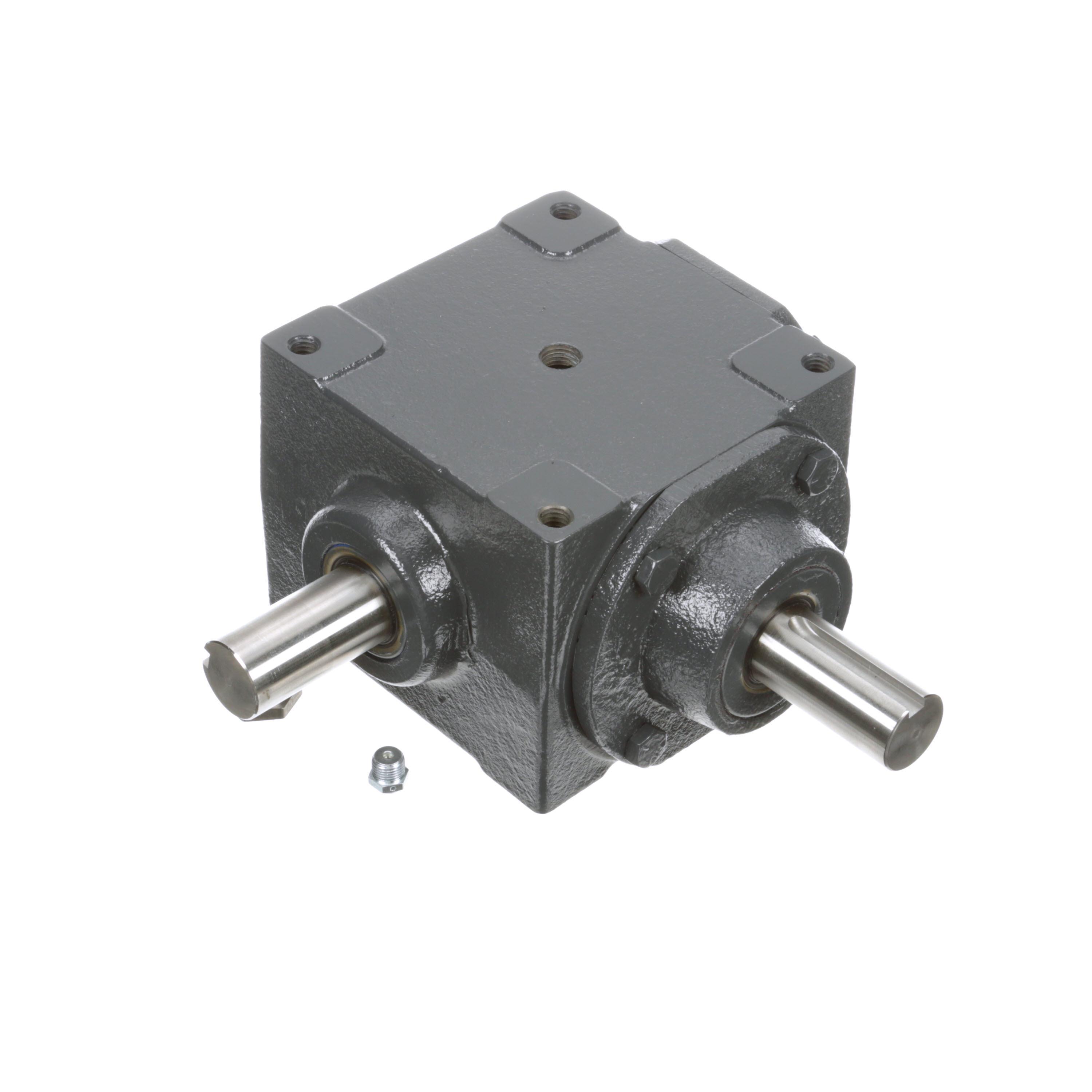

Hub City Bevel Gear Reducer, Right Angle Spiral Single Reduction Style D E, Series: 150, 2:1 Gear Ratio, 10-1/4 hp, Shaft Input, Shaft Output, 1 in Dia x 2 in L Input, 1 in Dia Output, 875 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 736 in-lb, 5-23/32 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 8-9/32 in D x 4-1/8 in H
