Brand
Hub City
Member SKU ID
395129261
AD SKU ID
REGAL_BPT_Q3_2020_19941
Category
Gear Reducers & Gearmotors|Gear Drives|Right Angle Gear Drives|Non-Helical Worm Right Angle Drives
Category Child Node
Non-Helical Worm Right Angle Drives
Centre Distance
1-3/4 in
Dimensions
4.81 in W
Efficiency
0.715
Gear Ratio
{1}
Horsepower
3/4 hp Input
Input Maximum Speed
1750 rpm
Input Size
7/8 in Dia
Input Type
C-Face Quill
Keyway Size
1/4 x 1/8 in Output
Lubrication Type
Conventional Oil
Material
Cast Iron
Output Maximum Speed
58.3 rpm
Output Size
1 in Dia
Output Type
Hollow Bore
Series
180PCX
Torque Rating
557 in-lb Output
Type
Right Angle Single Reduction Style A
Long Description

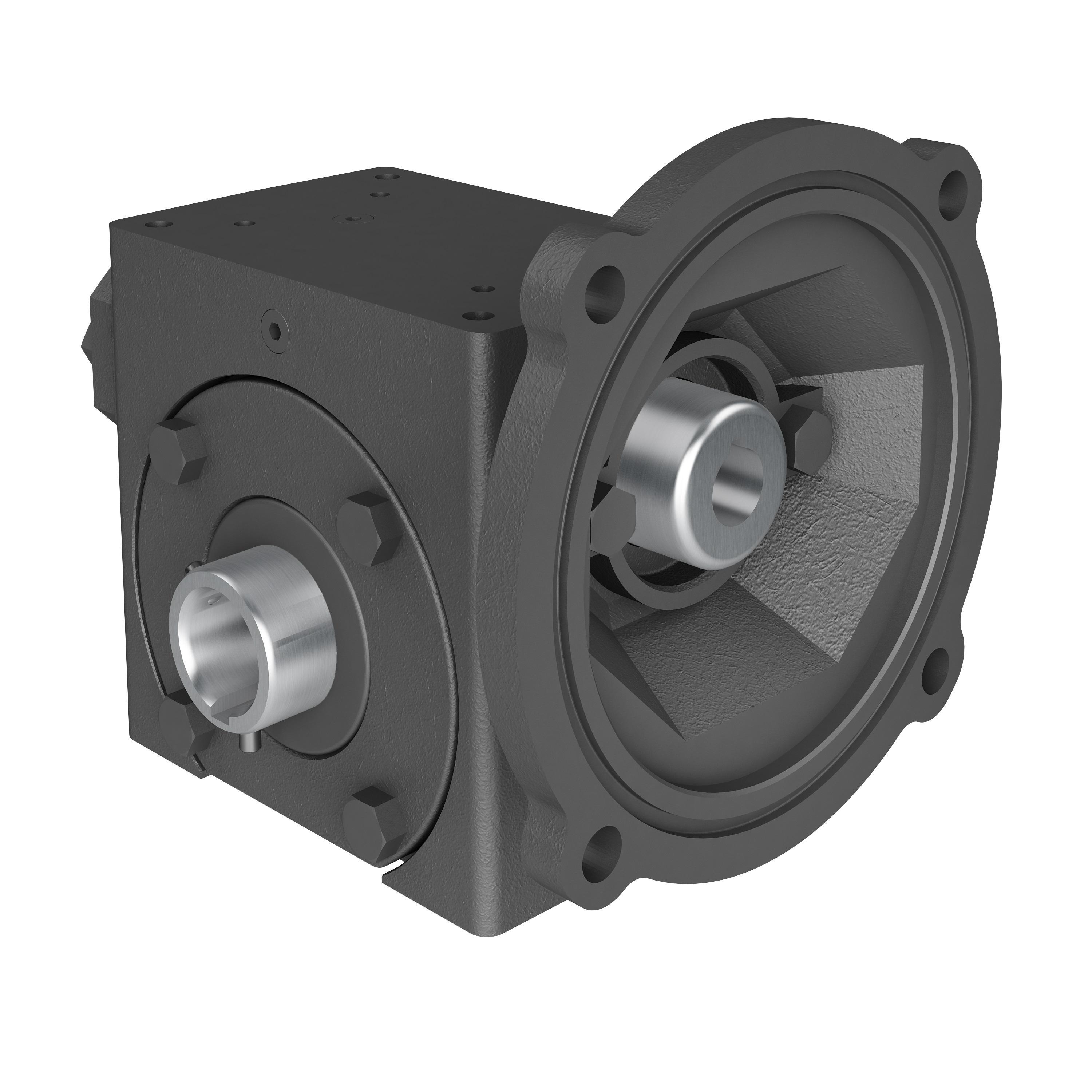

Hub City PowerCubeX Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 180PCX, 30:1 Gear Ratio, 3/4 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1 in Dia Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 557 in-lb Output, 1-3/4 in Centre Distance, 1/4 x 1/8 in Output Keyway, 71.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 4.81 in W
