Brand
Hub City
Member SKU ID
395129558
AD SKU ID
REGAL_BPT_Q3_2020_16773
Category
Gear Reducers & Gearmotors|Gear Drives|Right Angle Gear Drives|Spiral Bevel Right Angle Drives
Category Child Node
Spiral Bevel Right Angle Drives
Centre Distance
8-7/16 in
Dimensions
12-1/4 in W x 11-1/4 in D x 5-5/8 in H
Efficiency
0.975
Gear Ratio
{0}
Horsepower
46 hp
Input Maximum Speed
1750 rpm
Input Size
1-1/4 in Dia x 2-9/16 in L
Input Type
Shaft
Keyway Size
1/4 x 1/8 in Input/Output
Lubrication Type
Conventional Oil
Material
Cast Iron
Mounting Type
Four-Bolt Surface
Output Maximum Speed
1750 rpm
Output Size
1-1/4 in Dia x 2-1/2 in L
Output Type
Shaft
Series
66 Series
Torque Rating
1650 in-lb
Type
Right Angle Spiral Single Reduction Style A B
Long Description

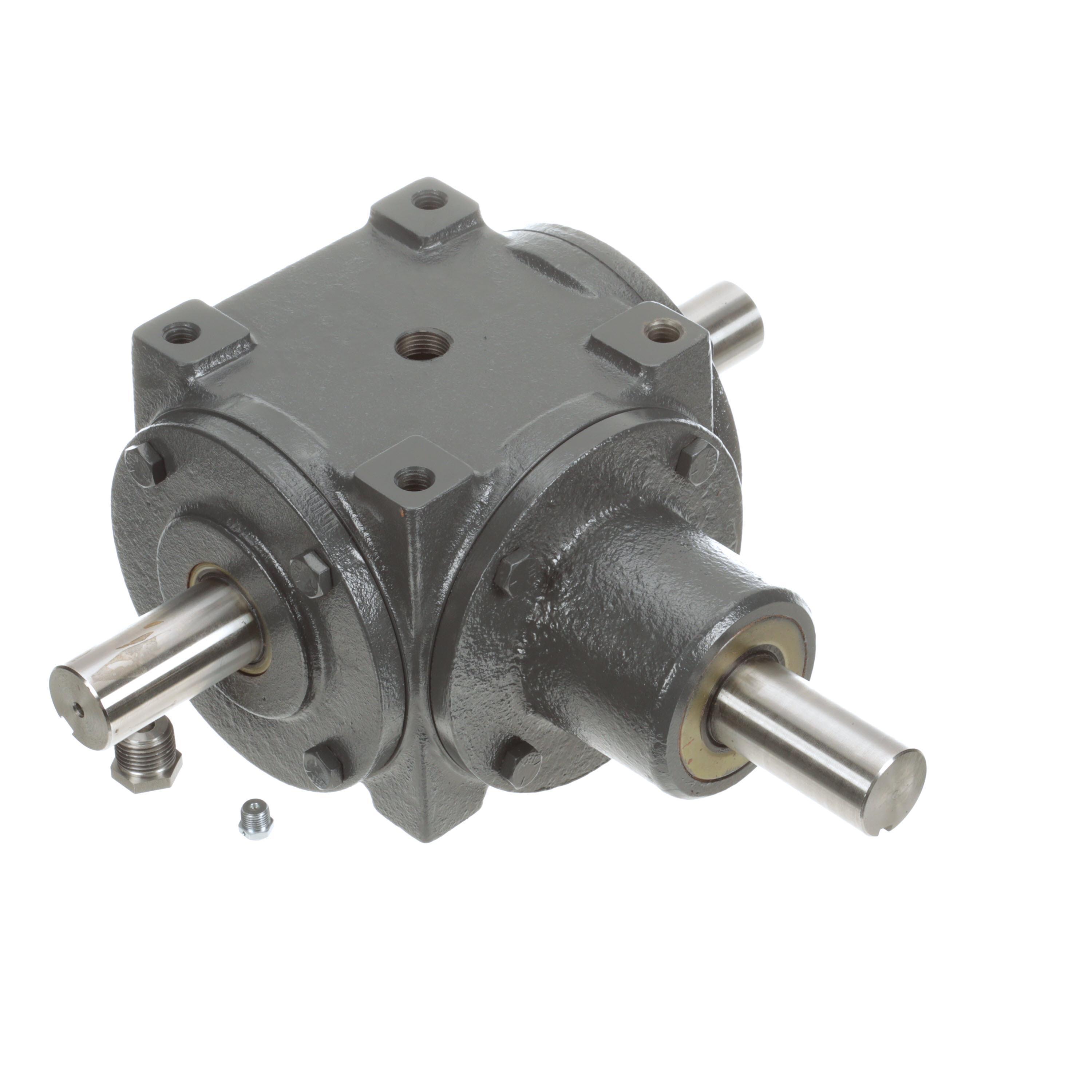

Hub City Bevel Gear Reducer, Right Angle Spiral Single Reduction Style A B, Series: 66 Series, 1:1 Gear Ratio, 46 hp, Shaft Input, Shaft Output, 1-1/4 in Dia x 2-9/16 in L Input, 1-1/4 in Dia x 2-1/2 in L Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1650 in-lb, 8-7/16 in Centre Distance, 1/4 x 1/8 in Input/Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 12-1/4 in W x 11-1/4 in D x 5-5/8 in H
