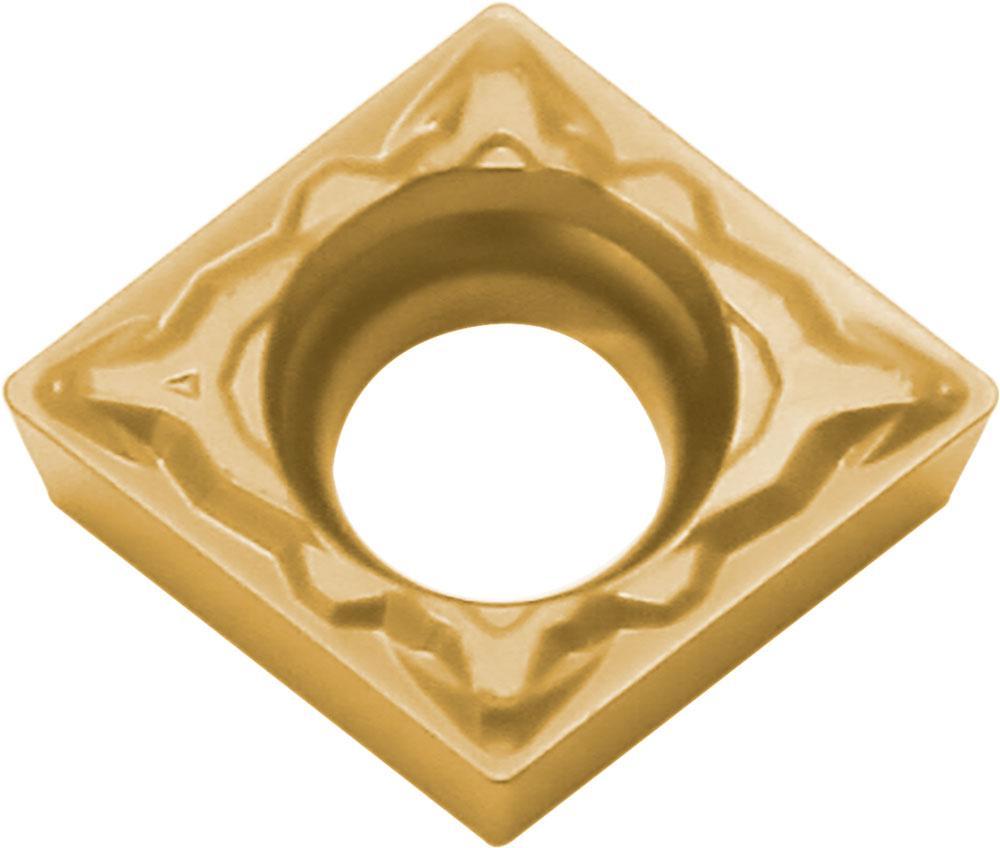

KYOCERA TMH00376 2-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole, 40 to 60 deg Countersink, ANSI Code: CCMT32505PPCA025P, CCMT Insert, Material Grade: P, #32505 Insert, Rhombic Shape, 09 Seat, Positive Rake, Neutral Cutting | Turning Inserts

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Inserts > Turning Inserts >

Additional Information

Additional Information

Brand

KYOCERA

Member SKU ID

395113179

AD SKU ID

KYOCERA_ISD_Q1_2021_06674

Category

Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts

Category Child Node

Turning Inserts

ANSI Code

CCMT32505PPCA025P

Chipbreaker

Corner Radius

0.0079 in

Cutting Direction

Neutral

Finish

VDC-TiCN/Al2O3/TiN Coated

For Use On

Carbon/Alloy Steel

Hole Diameter

0.1732 in

ISO Code

CCMT09T302PP

Included Angle

80 deg

Inscribed Circle

3/8 in

Insert Size

#32505

Insert Style

CCMT

Manufacturer's Grade

CA025P

Material

Carbide

Material Grade

Rake

Positive

Relief Angle

7 deg

Seat Size

Shape

Rhombic

Thickness

5/32 in

Type

2-Cutting Edge



Long Description

KYOCERA Indexable Turning Insert, 2-Cutting Edge, CCMT Insert, #32505 Insert, Rhombic Shape, 3/8 in Inscribed Circle, 5/32 in Thickness, 09 Seat, Positive Rake, PP Chipbreaker, 0.0079 in Corner Radius, 0.1732 in Diameter Hole, Manufacturers Grade: CA025P, ANSI Code: CCMT32505PPCA025P, ISO Code: CCMT09T302PP, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, VDC-TiCN/Al2O3/TiN Coated, Material Grade: P, For Use On: Carbon/Alloy Steel
