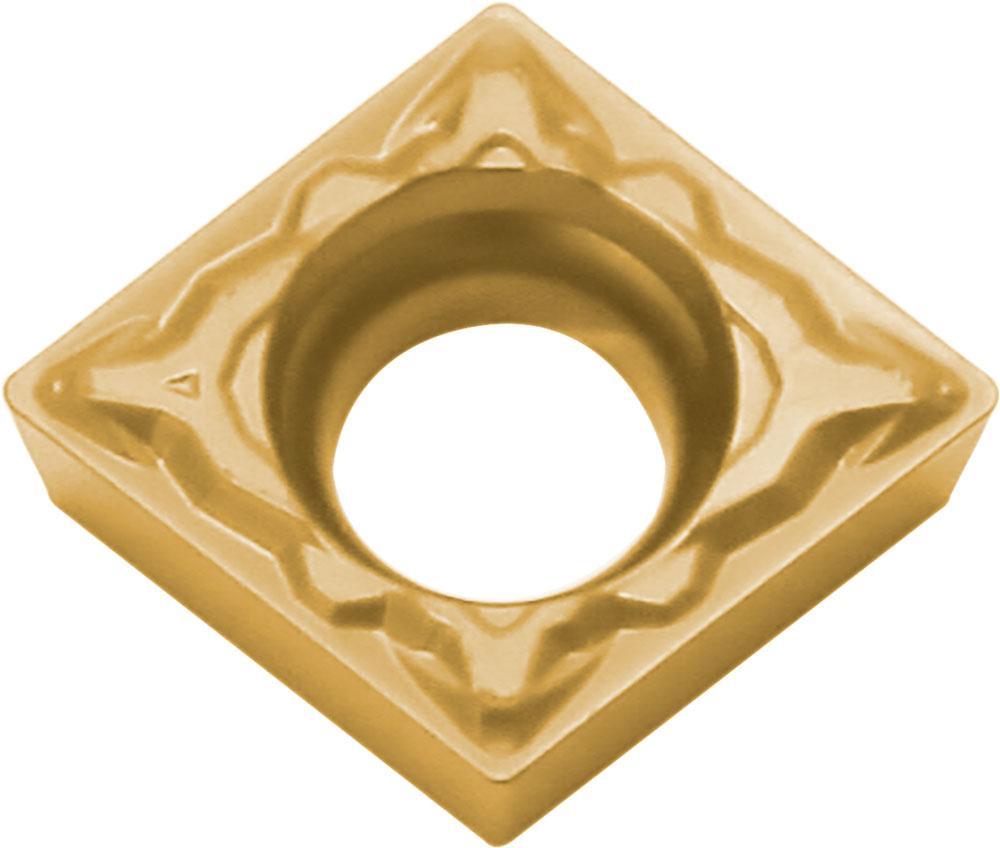

KYOCERA TAB00508 Turning Insert, ANSI Code: CCMT3252PP CA515, CCMT Insert, Material Grade: P, 3252 Insert, Diamond Shape, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: CA515 | Turning Inserts

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Inserts > Turning Inserts >

Additional Information

Additional Information

Brand

KYOCERA

Member SKU ID

395113273

AD SKU ID

KYOCERA_Q1_2018_003330

Category

Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts

Category Child Node

Turning Inserts

ANSI Code

CCMT3252PP CA515

Chipbreaker

Corner Radius

1/32 in

Cutting Direction

Neutral

Finish

CVD-TiCN/Al2O3/TiN Coated

For Use On

Steel

Hole Diameter

0.173 in

ISO Code

CCMT09T308PP CA515

Included Angle

80 deg

Inscribed Circle

3/8 in

Insert Size

3252

Insert Style

CCMT

Manufacturer's Grade

CA515

Material

Carbide

Material Grade

Rake

Positive

Relief Angle

7 deg

Shape

Diamond

Thickness

5/32 in



Long Description

KYOCERA Turning Insert, CCMT Insert, 3252 Insert, Diamond, 3/8 in Inscribed Circle, 5/32 in Thickness, Positive Rake, PP Chipbreaker, 1/32 in Corner Radius, 0.173 in Hole Dia, Manufacturers Grade: CA515, ANSI Code: CCMT3252PP CA515, ISO Code: CCMT09T308PP CA515, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN/Al2O3/TiN Coated, Material Grade: P, For Use On: Steel
