Brand
KYOCERA
Member SKU ID
395113485
AD SKU ID
KYOCERA_ISD_Q3_2021_08869
Category
Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts
Category Child Node
Turning Inserts
ANSI Code
CNGG432FPTKPR1535
Chipbreaker
FP-TK
Corner Radius
0.0315 in
Cutting Direction
Neutral
Finish
PVD-MEGACOAT NANO
For Use On
Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
Hole Diameter
0.2031 in
ISO Code
CNGG120408FP-TK
Included Angle
80 deg
Inscribed Circle
1/2 in
Insert Size
#432
Insert Style
CNGG
Manufacturer's Grade
PR1535
Material
Carbide
Material Grade
M, S
Rake
Negative
Relief Angle
0 deg
Seat Size
12
Series
ISOI
Shape
Diamond
Thickness
0.1874 in
Type
4-Cutting Edge
Long Description

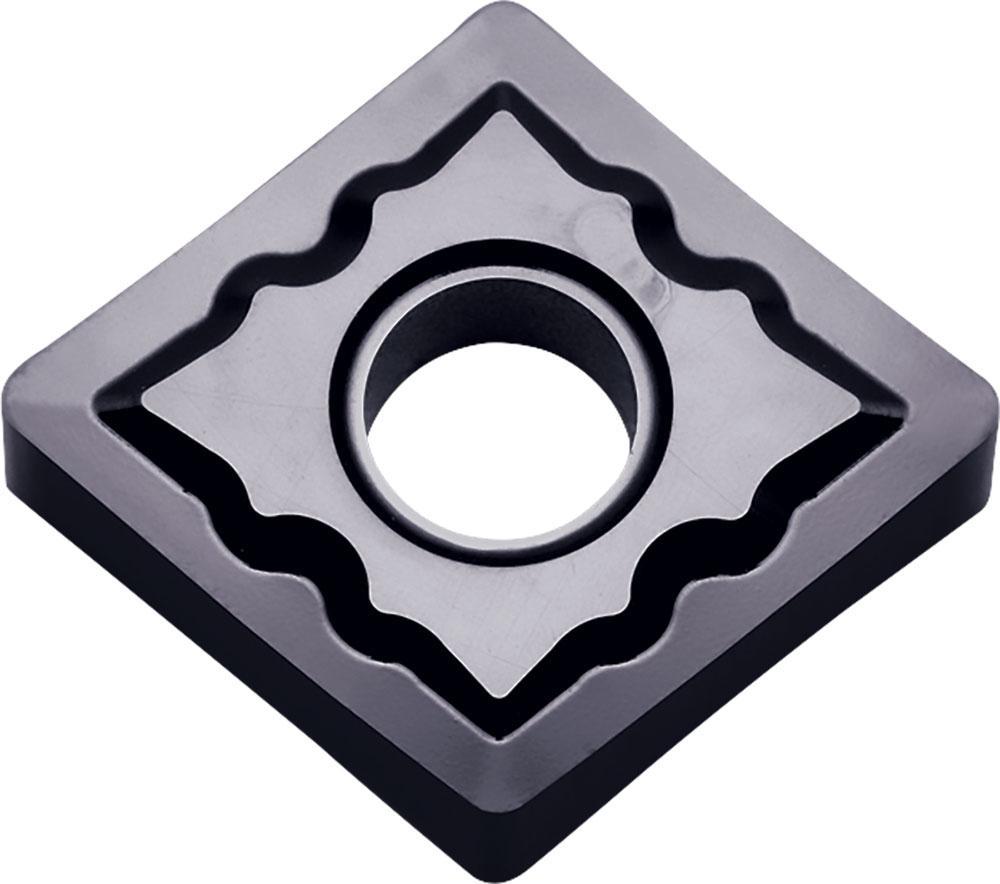

KYOCERA Indexable Turning Insert, 4-Cutting Edge, Series: ISOI, CNGG Insert, #432 Insert, Diamond Shape, 1/2 in Inscribed Circle, 0.1874 in Thickness, 12 Seat, Negative Rake, FP-TK Chipbreaker, 0.0315 in Corner Radius, 0.2031 in Diameter Hole, Manufacturers Grade: PR1535, ANSI Code: CNGG432FPTKPR1535, ISO Code: CNGG120408FP-TK, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-MEGACOAT NANO, Material Grade: M, S, For Use On: Stainless Steel, Heat-Resistant Alloy and Titanium Alloy
