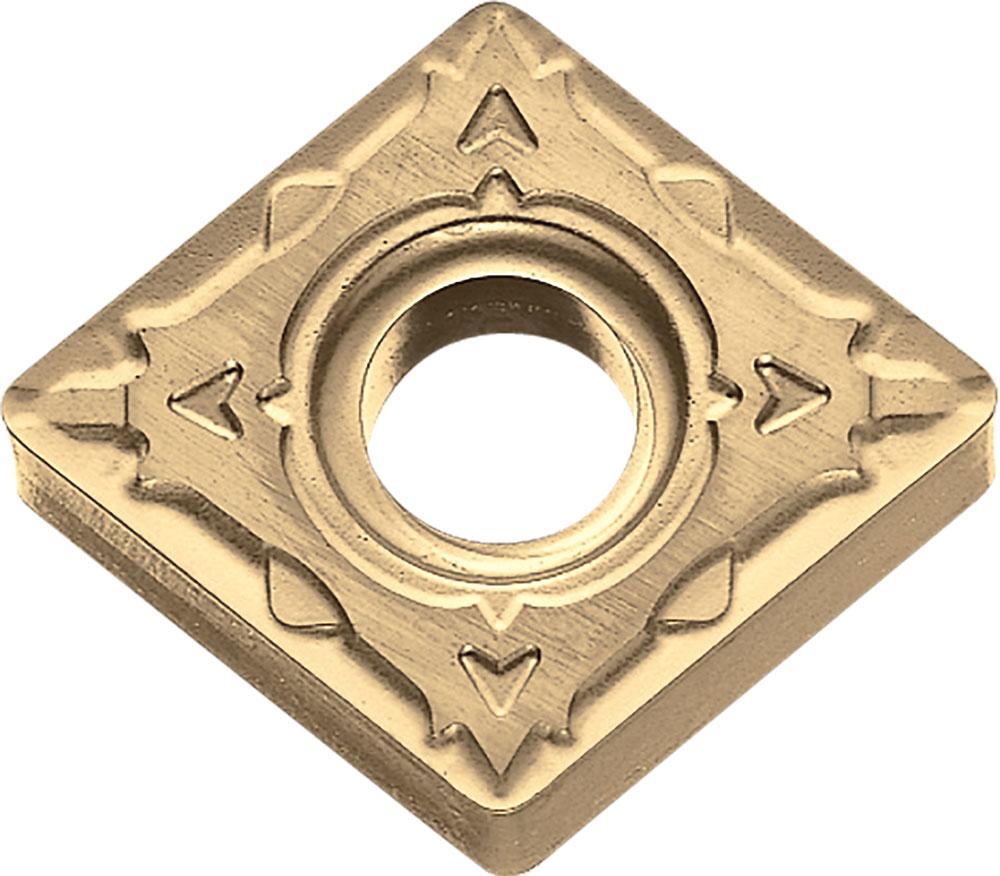

KYOCERA TLF01816 ISOI 4-Cutting Edge Indexable Turning Insert With 2-Sided Chipbreaker and Hole, ANSI Code: CNMG432WPPV710, CNMG Insert, Material Grade: P, #432 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, Cermet | Turning Inserts

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Inserts > Turning Inserts >

Additional Information

Additional Information

Brand

KYOCERA

Member SKU ID

395112939

AD SKU ID

KYOCERA_ISD_Q3_2021_17648

Category

Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts

Category Child Node

Turning Inserts

ANSI Code

CNMG432WPPV710

Chipbreaker

Corner Radius

0.0315 in

Cutting Direction

Neutral

Finish

PVD-TiCN/MEGACOAT NANO

For Use On

Carbon/Alloy Steel

Hole Diameter

0.2031 in

ISO Code

CNMG120408WP

Included Angle

80 deg

Inscribed Circle

1/2 in

Insert Size

#432

Insert Style

CNMG

Manufacturer's Grade

PV710

Material

Cermet

Material Grade

Rake

Negative

Relief Angle

0 deg

Seat Size

Series

ISOI

Shape

Diamond

Thickness

0.1874 in

Type

4-Cutting Edge



Long Description

KYOCERA Indexable Turning Insert, 4-Cutting Edge, Series: ISOI, CNMG Insert, #432 Insert, Diamond Shape, 1/2 in Inscribed Circle, 0.1874 in Thickness, 12 Seat, Negative Rake, WP Chipbreaker, 0.0315 in Corner Radius, 0.2031 in Diameter Hole, Manufacturers Grade: PV710, ANSI Code: CNMG432WPPV710, ISO Code: CNMG120408WP, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Cermet, PVD-TiCN/MEGACOAT NANO, Material Grade: P, For Use On: Carbon/Alloy Steel
