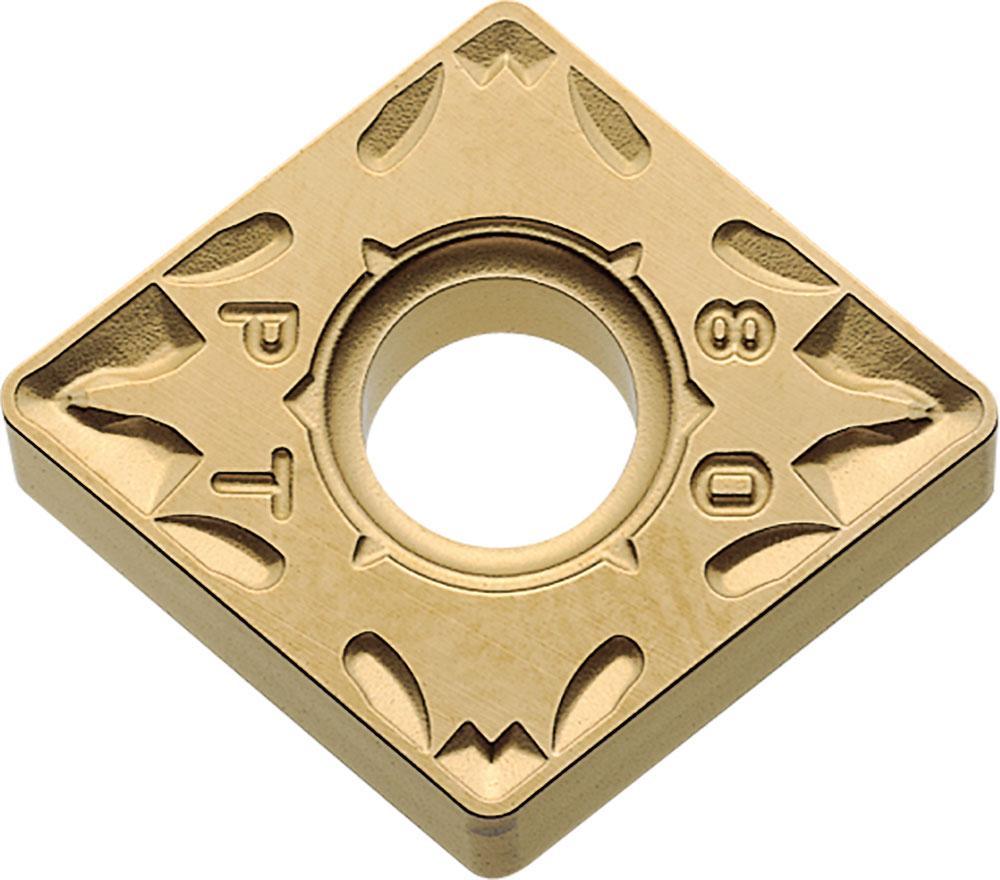

KYOCERA TJV01053 ISOI 4-Cutting Edge Indexable Turning Insert With 2-Sided Chipbreaker and Hole, ANSI Code: CNMG544PTCA6525, CNMG Insert, Material Grade: M, S, #544 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, Carbide | Turning Inserts

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Inserts > Turning Inserts >

Additional Information

Additional Information

Brand

KYOCERA

Member SKU ID

395113348

AD SKU ID

KYOCERA_ISD_Q3_2021_06974

Category

Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts

Category Child Node

Turning Inserts

ANSI Code

CNMG544PTCA6525

Chipbreaker

Corner Radius

0.063 in

Cutting Direction

Neutral

Finish

CVD-TiCN/Al2O3/TiN Coated

For Use On

Stainless Steel and Heat-Resistant Alloy

Hole Diameter

1/4 in

ISO Code

CNMG160616PT

Included Angle

80 deg

Inscribed Circle

5/8 in

Insert Size

#544

Insert Style

CNMG

Manufacturer's Grade

CA6525

Material

Carbide

Material Grade

M, S

Rake

Negative

Relief Angle

0 deg

Seat Size

Series

ISOI

Shape

Diamond

Thickness

1/4 in

Type

4-Cutting Edge



Long Description

KYOCERA Indexable Turning Insert, 4-Cutting Edge, Series: ISOI, CNMG Insert, #544 Insert, Diamond Shape, 5/8 in Inscribed Circle, 1/4 in Thickness, 16 Seat, Negative Rake, PT Chipbreaker, 0.063 in Corner Radius, 1/4 in Diameter Hole, Manufacturers Grade: CA6525, ANSI Code: CNMG544PTCA6525, ISO Code: CNMG160616PT, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN/Al2O3/TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Heat-Resistant Alloy
