Brand
KYOCERA
Member SKU ID
395113290
AD SKU ID
KYOCERA_ISD_Q3_2021_03953
Category
Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Turning & Boring|Indexable Turning & Profiling|Indexable Turning Insert Holders
Category Child Node
Indexable Turning Insert Holders
ANSI Code
SDJCR163D

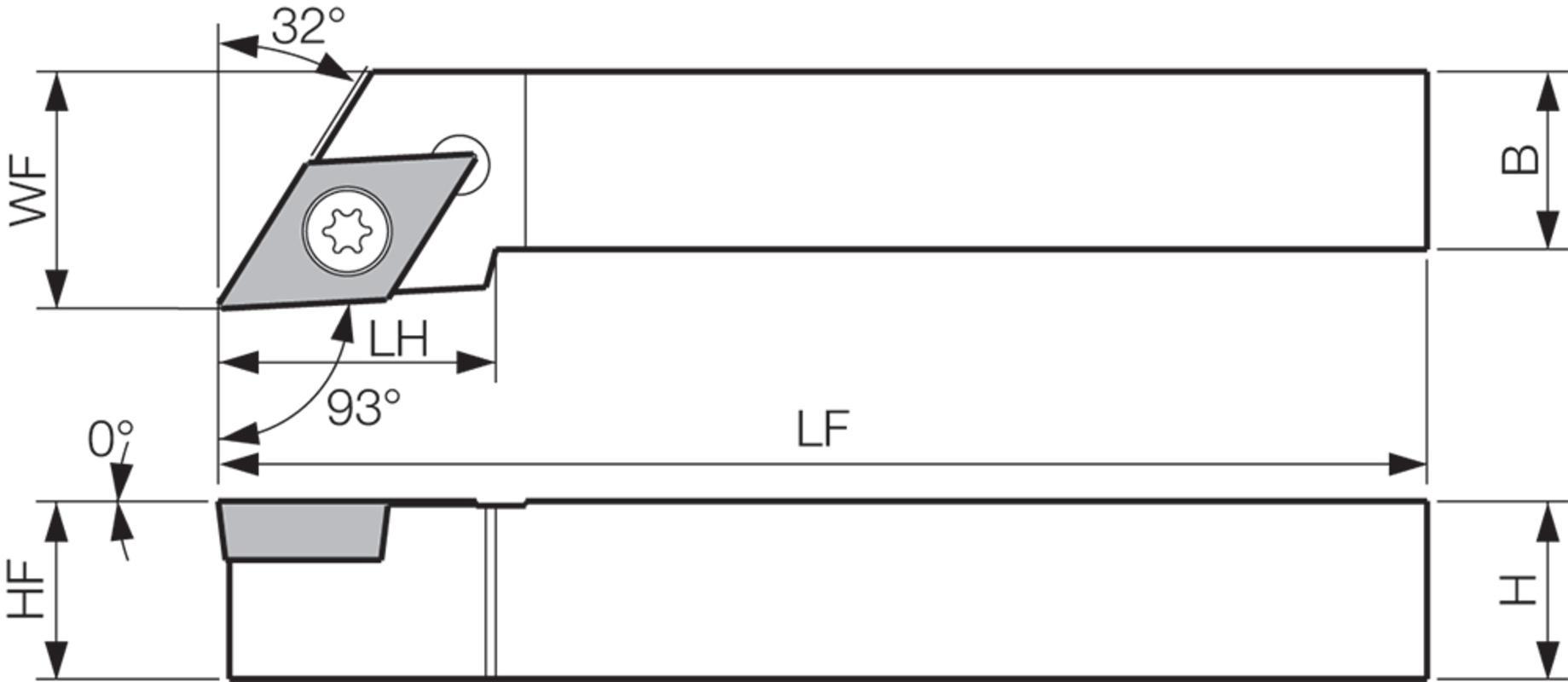

Back of Bar to Cutting Edge
1-1/4 in
Cutting Direction
Right Hand
Head Length
0.81 in
ISO Code
SDJCR163D
Inscribed Circle
3/8 in
Insert Compatibility
DCGT325/DCMX325/DCMT325/DCET325/DCGW325/DCMW325
Insert Seat Size
0.1563 in
Lead Angle
93 deg
Material
Steel
Overall Length
6 in
Rake
Positive
Series
SDTH
Shank Size
1 in W x 1 in H
Tool Holder Style
SDJC
Type
Multi-Use
Long Description
KYOCERA Indexable Turning Insert Holder, Multi-Use, Series: SDTH, SDJC Tool Holder, 6 in Overall Length, 1 in W x 1 in H Shank, Insert Compatibility: DCGT325/DCMX325/DCMT325/DCET325/DCGW325/DCMW325, 0.1563 in Insert Seat, Right Hand Cutting Direction, 3/8 in Inscribed Circle, 1-1/4 in Back of Bar to Cutting Edge, 93 deg Lead Angle, 0.81 in Head Length, ANSI Code: SDJCR163D, ISO Code: SDJCR163D, Positive Rake, Steel
