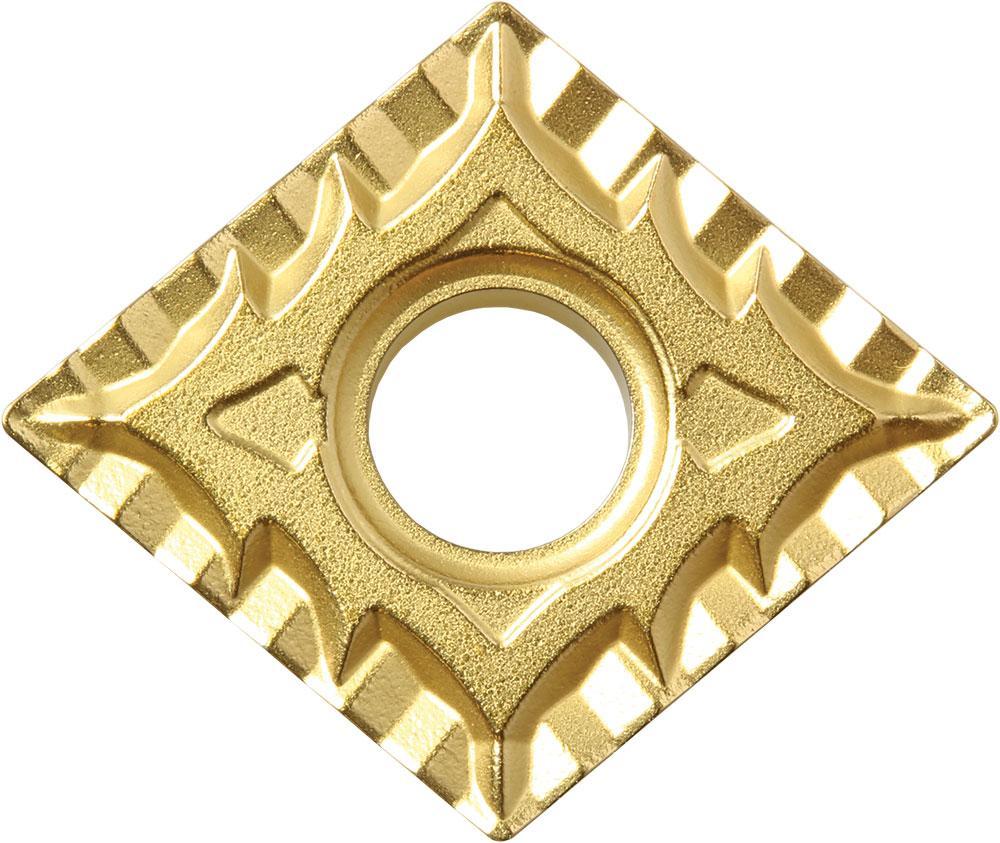

KYOCERA TAB00741 2-Sided Turning Insert, ANSI Code: CNMG432CQ CA515, CNMG Insert, Material Grade: P, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: CA515 | Turning Inserts

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Inserts > Turning Inserts >

Additional Information

Additional Information

Brand

KYOCERA

Member SKU ID

395113894

AD SKU ID

KYOCERA_Q1_2018_003651

Category

Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts

Category Child Node

Turning Inserts

ANSI Code

CNMG432CQ CA515

Chipbreaker

Corner Radius

1/32 in

Cutting Direction

Neutral

Finish

CVD-TiCN/Al2O3/TiN Coated

For Use On

Steel

Hole Diameter

0.203 in

ISO Code

CNMG120408CQ CA515

Included Angle

80 deg

Inscribed Circle

1/2 in

Insert Size

432

Insert Style

CNMG

Manufacturer's Grade

CA515

Material

Carbide

Material Grade

Rake

Negative

Relief Angle

0 deg

Seat Size

Shape

Diamond

Thickness

3/16 in

Type

2-Sided



Long Description

KYOCERA Turning Insert, 2-Sided, CNMG Insert, 432 Insert, Diamond, 1/2 in Inscribed Circle, 3/16 in Thickness, 12 Seat, Negative Rake, CQ Chipbreaker, 1/32 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: CA515, ANSI Code: CNMG432CQ CA515, ISO Code: CNMG120408CQ CA515, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN/Al2O3/TiN Coated, Material Grade: P, For Use On: Steel
