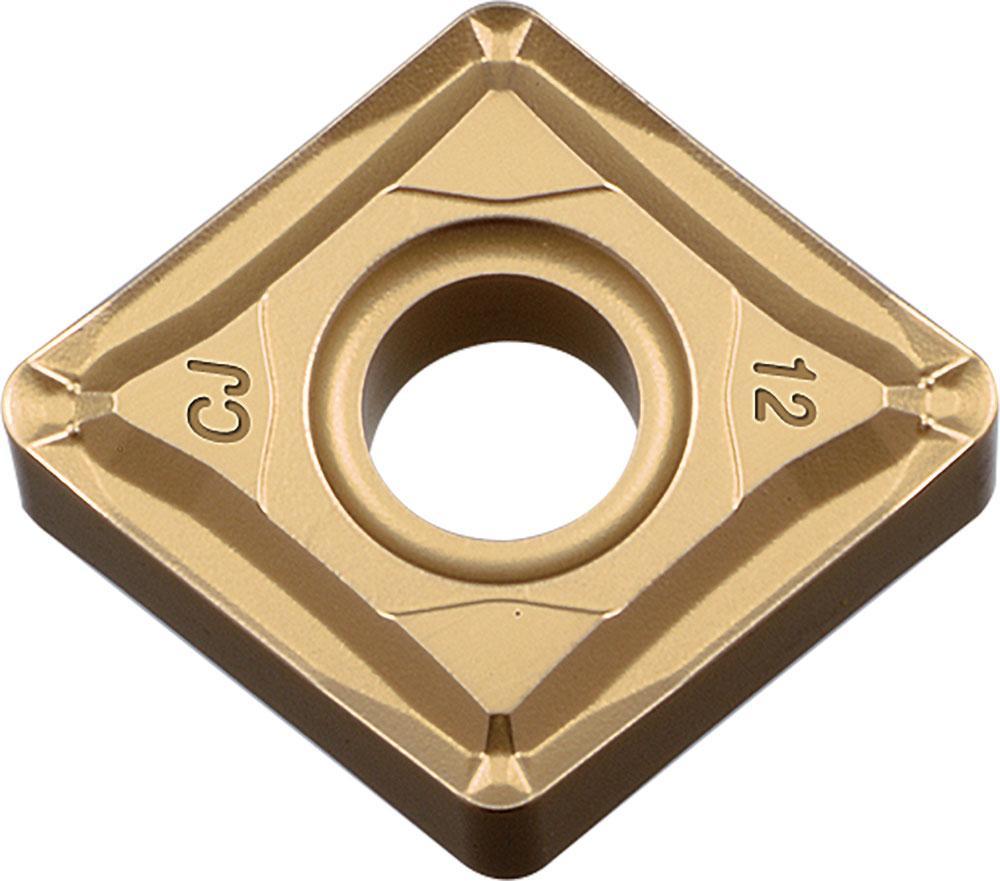

KYOCERA TAC00761 4-Cutting Edge Indexable Turning Insert With 2-Sided Chipbreaker, Hole, ANSI Code: CNMG432CJCA525, CNMG Insert, Material Grade: P, #432 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Carbon/Alloy Steel | Turning Inserts

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Inserts > Turning Inserts >

Additional Information

Additional Information

Brand

KYOCERA

Member SKU ID

395112437

AD SKU ID

KYOCERA_ISD_Q1_2021_05253

Category

Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts

Category Child Node

Turning Inserts

ANSI Code

CNMG432CJCA525

Chipbreaker

Corner Radius

1/32 in

Cutting Direction

Neutral

Finish

CVD/TiCl2O3/TiN Coated

For Use On

Carbon/Alloy Steel

Hole Diameter

0.2031 in

ISO Code

CNMG120408CJ

Included Angle

80 deg

Inscribed Circle

1/2 in

Insert Size

#432

Insert Style

CNMG

Manufacturer's Grade

CA525

Material

Carbide

Material Grade

Rake

Negative

Relief Angle

0 deg

Seat Size

Series

CA5

Shape

Rhombic

Thickness

3/16 in

Type

4-Cutting Edge



Long Description

KYOCERA Indexable Turning Insert, 4-Cutting Edge, Series: CA5, CNMG Insert, #432 Insert, Rhombic Shape, 1/2 in Inscribed Circle, 3/16 in Thickness, 12 Seat, Negative Rake, CJ Chipbreaker, 1/32 in Corner Radius, 0.2031 in Diameter Hole, Manufacturers Grade: CA525, ANSI Code: CNMG432CJCA525, ISO Code: CNMG120408CJ, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD/TiCl2O3/TiN Coated, Material Grade: P, For Use On: Carbon/Alloy Steel
