Brand
KYOCERA
Member SKU ID
395113676
AD SKU ID
KYOCERA_ISD_Q3_2021_16034
Category
Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts
Category Child Node
Turning Inserts
ANSI Code
DNMG432TKCA6525
Chipbreaker
TK
Corner Radius
0.0315 in
Cutting Direction
Neutral
Finish
CVD-TiCN/Al2O3/TiN Coated
For Use On
Stainless Steel and Heat-Resistant Alloy
Hole Diameter
0.2031 in
ISO Code
DNMG150408TK
Included Angle
55 deg
Inscribed Circle
1/2 in
Insert Size
#432
Insert Style
DNMG
Manufacturer's Grade
CA6525
Material
Carbide
Material Grade
M, S
Rake
Negative
Relief Angle
0 deg
Seat Size
15
Series
ISOI
Shape
Diamond
Thickness
0.1874 in
Type
4-Cutting Edge
Long Description

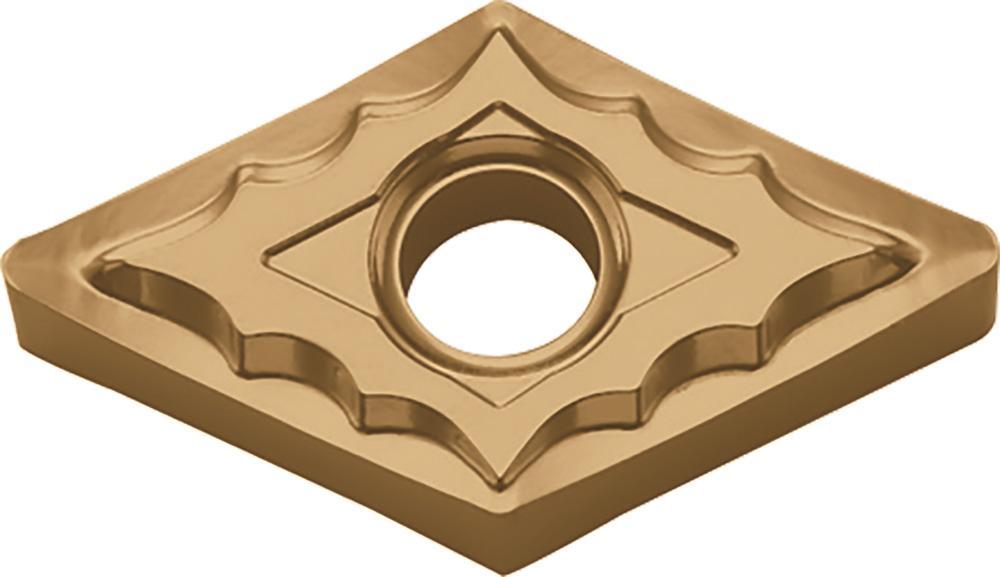

KYOCERA Indexable Turning Insert, 4-Cutting Edge, Series: ISOI, DNMG Insert, #432 Insert, Diamond Shape, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, TK Chipbreaker, 0.0315 in Corner Radius, 0.2031 in Diameter Hole, Manufacturers Grade: CA6525, ANSI Code: DNMG432TKCA6525, ISO Code: DNMG150408TK, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN/Al2O3/TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Heat-Resistant Alloy
