Brand
KYOCERA
Member SKU ID
395113135
AD SKU ID
KYOCERA_ISD_Q3_2021_09811
Category
Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts
Category Child Node
Turning Inserts
ANSI Code
VNMG331PPCA025P
Chipbreaker
PP
Corner Radius
0.0157 in
Cutting Direction
Neutral
Finish
CVD-TiCN/Al2O3/TiN Coated
For Use On
Carbon/Alloy Steel
Hole Diameter
0.15 in
ISO Code
VNMG160404PP
Included Angle
35 deg
Inscribed Circle
3/8 in
Insert Size
#331
Insert Style
VNMG
Manufacturer's Grade
CA025P
Material
Carbide
Material Grade
P
Rake
Negative
Relief Angle
0 deg
Seat Size
16
Series
ISOI
Shape
Diamond
Thickness
0.1874 in
Type
4-Cutting Edge
Long Description

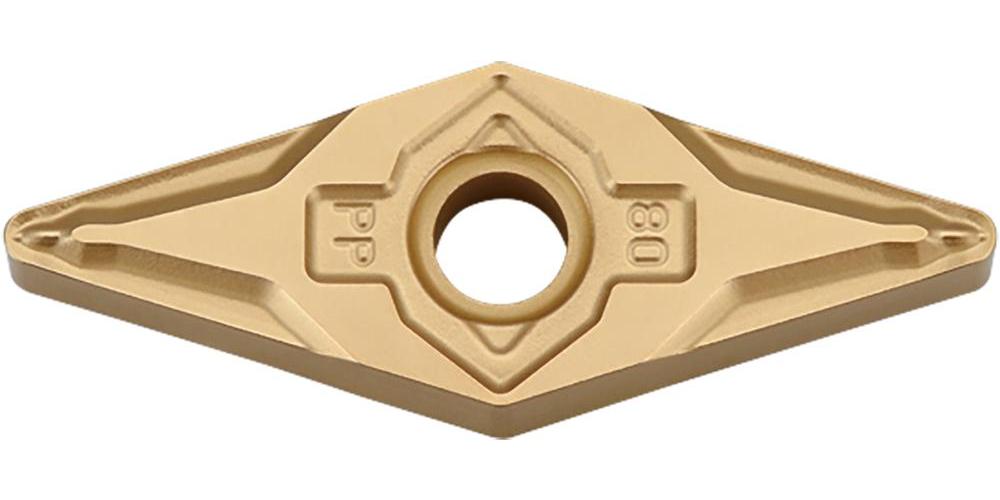

KYOCERA Indexable Turning Insert, 4-Cutting Edge, Series: ISOI, VNMG Insert, #331 Insert, Diamond Shape, 3/8 in Inscribed Circle, 0.1874 in Thickness, 16 Seat, Negative Rake, PP Chipbreaker, 0.0157 in Corner Radius, 0.15 in Diameter Hole, Manufacturers Grade: CA025P, ANSI Code: VNMG331PPCA025P, ISO Code: VNMG160404PP, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN/Al2O3/TiN Coated, Material Grade: P, For Use On: Carbon/Alloy Steel
