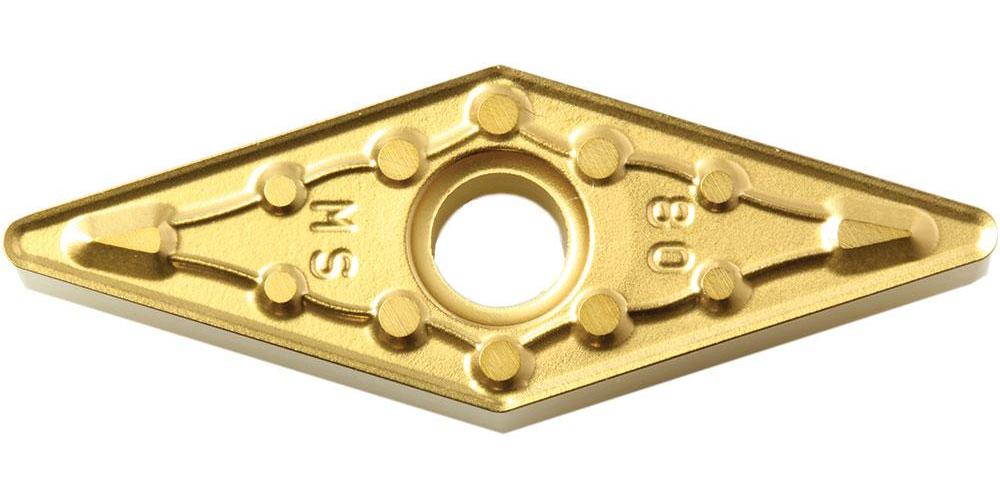

KYOCERA TJV07633 2-Sided Turning Insert, ANSI Code: VNMG333MS CA6525, VNMG Insert, Material Grade: M, 333 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: CA6525 | Turning Inserts

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Inserts > Turning Inserts >

Additional Information

Additional Information

Brand

KYOCERA

Member SKU ID

395112542

AD SKU ID

KYOCERA_Q1_2018_001801

Category

Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts

Category Child Node

Turning Inserts

ANSI Code

VNMG333MS CA6525

Chipbreaker

Corner Radius

3/64 in

Cutting Direction

Neutral

Finish

CVD-TiCN/Al2O3/TiN Coated

For Use On

Stainless Steel

Hole Diameter

0.15 in

ISO Code

VNMG160412MS CA6525

Included Angle

35 deg

Inscribed Circle

3/8 in

Insert Size

333

Insert Style

VNMG

Manufacturer's Grade

CA6525

Material

Carbide

Material Grade

Rake

Negative

Relief Angle

0 deg

Seat Size

Shape

Diamond

Thickness

3/16 in

Type

2-Sided



Long Description

KYOCERA Turning Insert, 2-Sided, VNMG Insert, 333 Insert, Diamond, 3/8 in Inscribed Circle, 3/16 in Thickness, 16 Seat, Negative Rake, MS Chipbreaker, 3/64 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: CA6525, ANSI Code: VNMG333MS CA6525, ISO Code: VNMG160412MS CA6525, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN/Al2O3/TiN Coated, Material Grade: M, For Use On: Stainless Steel
