Brand
KYOCERA
Member SKU ID
395113886
AD SKU ID
CAX_0824_P1DR7WZ_2068
Category
Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Turning Inserts
Category Child Node
Turning Inserts
ANSI Code
WNMG432PMGCA125P
Chipbreaker
PMG
Corner Radius
1/32 in
Cutting Direction
Neutral
Finish
CVD
For Use On
Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel
Hole Diameter
0.203 in
ISO Code
WNMG080408PMG
Included Angle
80 deg
Inscribed Circle
1/2 in
Insert Size
432PMG
Insert Style
WNMG
Material
Carbide
Material Grade
CA125P
Rake
Negative
Series
ISOI
Shape
Trigon
Thickness
3/16 in
Long Description

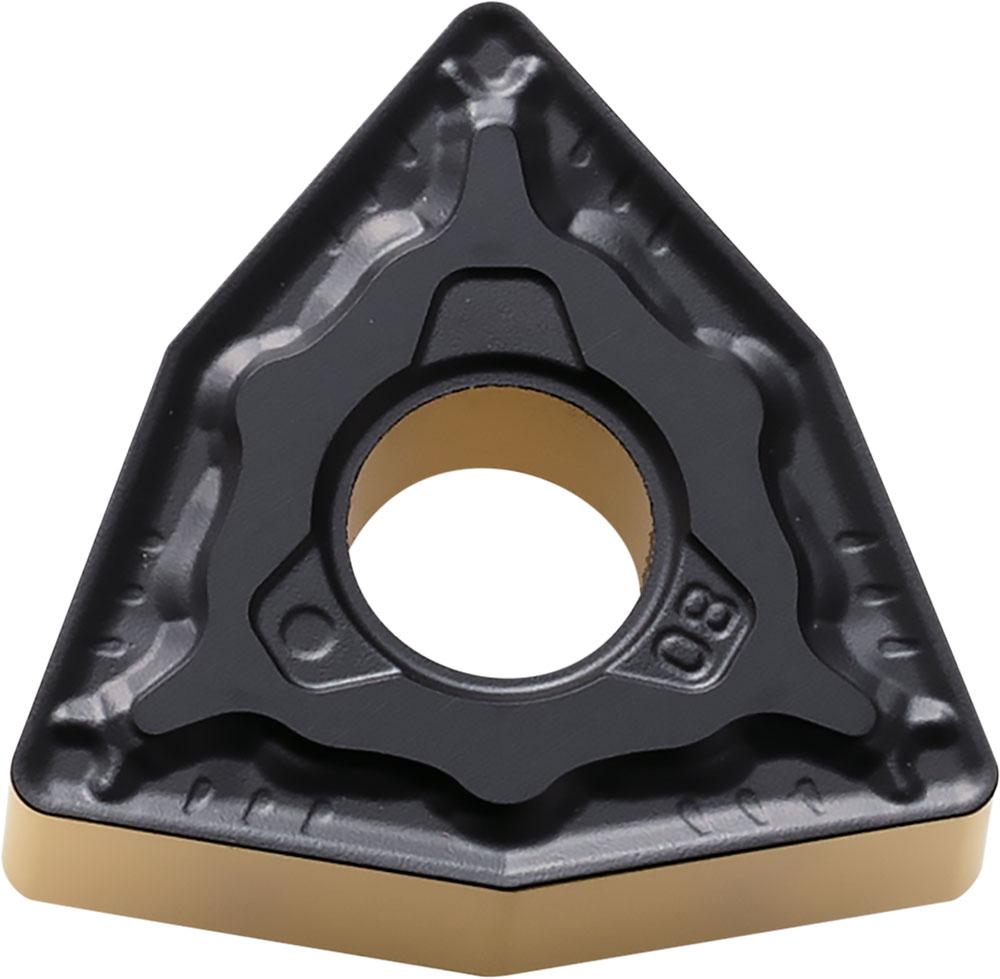

KYOCERA, TMK00500, Insert, Series: ISOI, WNMG Insert, 432PMG Insert, Trigon Shape, 1/2 in Inscribed Circle, 3/16 in Thickness, Negative Rake, PMG Chipbreaker, 1/32 in Corner Radius, 0.203 in Diameter Hole, ANSI Code: WNMG432PMGCA125P, ISO Code: WNMG080408PMG, 80 deg Included Angle, Neutral Cutting Direction, Carbide, CVD, Material Grade: CA125P, For Use On: Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel
