Brand
Tsubaki
Member SKU ID
395113668
AD SKU ID
BPT_Q4_2019_TUSBAKI_0732
Category
Bushings|Shaft Bushings|Keyless Compression Hubs
Category Child Node
Keyless Compression Hubs
Bore Diameter
1-1/2 in
Finish
Uncoated
Hub Contact Pressure
15500 psi
Material
Carbon Steel
Outside Diameter
2.559 in
Overall Length
1.024 in
Screw Size
M6 x 18
Series
AS Series
Shaft Contact Pressure
26590 psi
Temperature Rating
-22 to 392 deg F
Transmissible Thrust
10560 lb
Transmissible Torque
658 ft-lb
Type
Multi-Purpose
Long Description

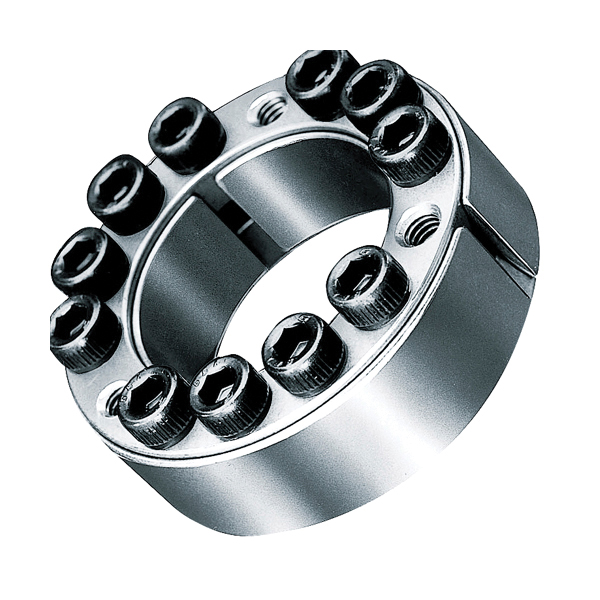

Tsubaki Power-Lock Keyless Locking Device, Multi-Purpose, Series: AS Series, 1-1/2 in Bore Dia, 2.559 in Outside Dia, 658 ft-lb Transmissible Torque, 10560 lb Transmissible Thrust, 26590 psi Shaft Contact, 15500 psi Hub Contact, M6 x 18 Screw, 1.024 in Overall Length, -22 to 392 deg F, Carbon Steel, Uncoated
