Brand
Tsubaki
Member SKU ID
395114142
AD SKU ID
BPT_Q4_2019_TUSBAKI_0706
Category
Bushings|Shaft Bushings|Keyless Compression Hubs
Category Child Node
Keyless Compression Hubs
Bore Diameter
1-15/16 in
Finish
Uncoated
Hub Contact Pressure
19871 psi
Outside Diameter
3 in
Overall Length
1.496 in
Screw Size
M6 x 25
Series
KE Series
Shaft Contact Pressure
28863 psi
Temperature Rating
-22 to 392 deg F
Transmissible Thrust
13382 lb
Transmissible Torque
1143 ft-lb
Long Description

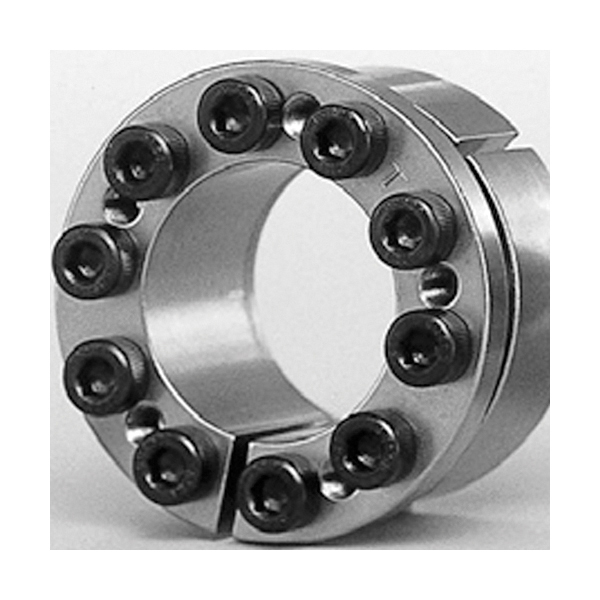

Tsubaki Power-Lock Keyless Locking Device, Series: KE Series, 1-15/16 in Bore Dia, 3 in Outside Dia, 1143 ft-lb Transmissible Torque, 13382 lb Transmissible Thrust, 28863 psi Shaft Contact, 19871 psi Hub Contact, M6 x 25 Screw, 1.496 in Overall Length, -22 to 392 deg F, Uncoated
