Brand
Tsubaki
Member SKU ID
395112972
AD SKU ID
BPT-US-Tsubaki-10116
Category
Bushings|Shaft Bushings|Keyless Bushings
Category Child Node
Keyless Bushings
Bore Diameter
1 in
Hub Contact Pressure
18275 psi
Outside Diameter
1.688 in
Overall Length
1.181 in
Screw Size
M5 x 20
Series
KE Inch
Shaft Contact Pressure
30894 psi
Temperature Rating
-22 to 392 deg F
Transmissible Thrust
5836 lb
Transmissible Torque
257 ft-lb
Long Description

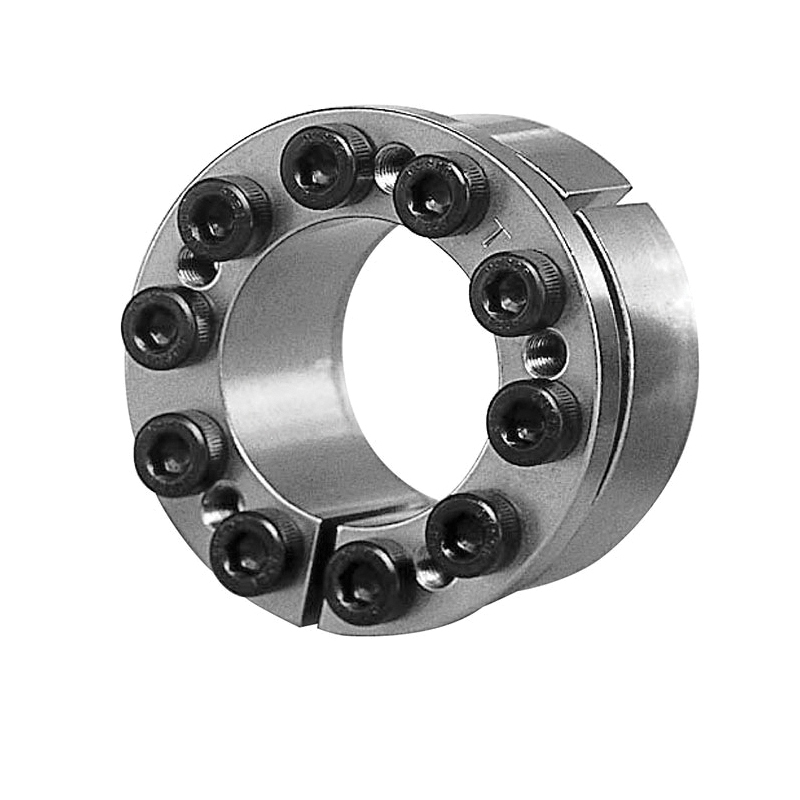

Tsubaki Power-Lock Keyless Locking Bushing, Series: KE Inch, 1 in Bore Dia, 1.688 in Outside Dia, 257 ft-lb Transmissible Torque, 5836 lb Transmissible Thrust, 30894 psi Shaft Contact Pressure, 18275 psi Hub Contact Pressure, M5 x 20 Screw, 1.181 in Overall Length, -22 to 392 deg F
