Brand
Tsubaki
Member SKU ID
395114470
AD SKU ID
BPT_Q4_2019_TUSBAKI_0690
Category
Bushings|Shaft Bushings|Keyless Compression Hubs
Category Child Node
Keyless Compression Hubs
Bore Diameter
2-3/16 in
Finish
Uncoated
Hub Contact Pressure
17780 psi
Material
Carbon Steel
Outside Diameter
3.5433 in
Overall Length
1.26 in
Screw Size
M8 x 22
Series
AS Series
Shaft Contact Pressure
28870 psi
Temperature Rating
-22 to 392 deg F
Transmissible Thrust
19360 lb
Transmissible Torque
1779 ft-lb
Type
Multi-Purpose
Long Description

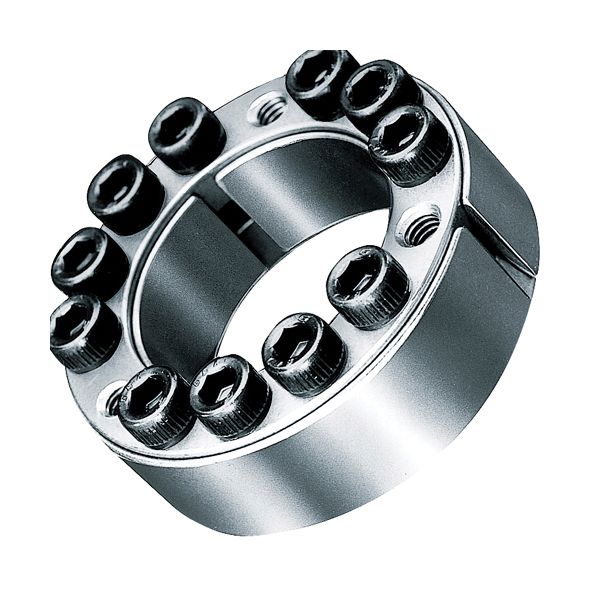

Tsubaki Power-Lock Keyless Locking Device, Multi-Purpose, Series: AS Series, 2-3/16 in Bore Dia, 3.5433 in Outside Dia, 1779 ft-lb Transmissible Torque, 19360 lb Transmissible Thrust, 28870 psi Shaft Contact, 17780 psi Hub Contact, M8 x 22 Screw, 1.26 in Overall Length, -22 to 392 deg F, Carbon Steel, Uncoated
