Brand
Tsubaki
Member SKU ID
395112751
AD SKU ID
BPT_Q4_2019_TUSBAKI_0821
Category
Bushings|Shaft Bushings|Keyless Compression Hubs
Category Child Node
Keyless Compression Hubs
Bore Diameter
22 mm
Finish
Uncoated
Hub Contact Pressure
85 MPa
Material
Stainless Steel
Outside Diameter
47 mm
Overall Length
26 mm
Screw Size
M6 x 18
Series
AS Series
Shaft Contact Pressure
181 MPa
Temperature Rating
-30 to 200 deg C
Transmissible Thrust
26.5 kN
Transmissible Torque
294 N-m
Type
Multi-Purpose
Long Description

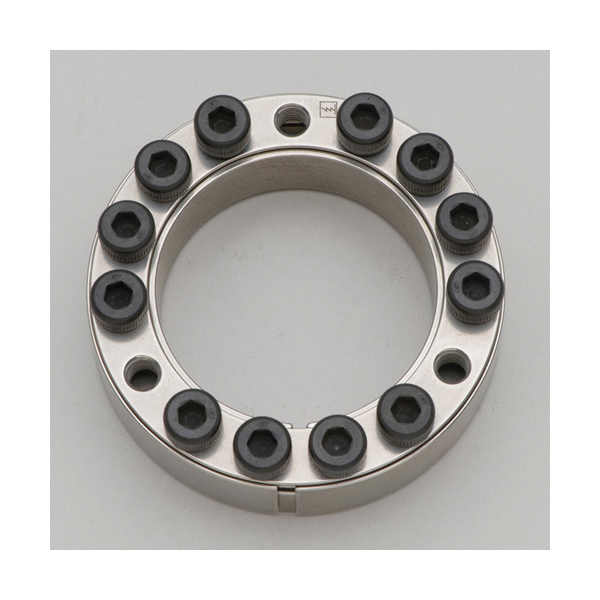

Tsubaki Power-Lock Keyless Locking Device, Multi-Purpose, Series: AS Series, 22 mm Bore Dia, 47 mm Outside Dia, 294 N-m Transmissible Torque, 26.5 kN Transmissible Thrust, 181 MPa Shaft Contact, 85 MPa Hub Contact, M6 x 18 Screw, 26 mm Overall Length, -30 to 200 deg C, Stainless Steel, Uncoated
